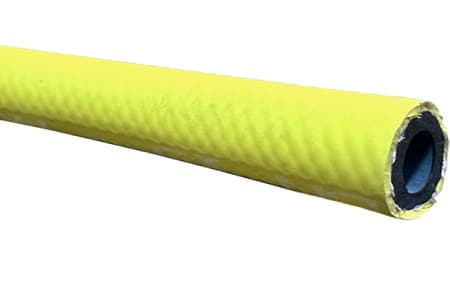

CASTOR 30® OHM EPDM YELLOW HOSE

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24
Discharge hose | Reinforcement: Two textile reinforcement | Inner wall: EPDM | Outer wall: EPDM | Working pressure: 30 BAR | Temperature range: -40°C to +110°C

Product params

Working Pressure [bar]

30

Burst Pressure [bar]

90

Inner Wall

EPDM

Conductivity

Yes

The Multi-Purpose yellow rubber hose suitable for heavier applications, e.g. for hot water, cooling or compressed air. Often substances in plastic processing, industrial installations and workshops. Torsion resistant, retains full flow meter even in very narrow bends and on short switches. Highly drainable and solid product, outer layer resistant to abrasions. The hose can be used to transport industrial water, water, glycol, light water chemicals and compressed air.

The hose is conductive, i.e. R<10⁶ Ω through the wall

Inner wall: EPDM

Outer wall: EPDM

Reinforcement: Two textile reinforcement

Working pressure: 30 BAR

Temperature range: -40°C to +110°C

Norms: UNI ISO 1307/97

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Weight gr/mtr
Coil [mtr]
MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001101
Variant1001101
Inner Diameter [mm]8
Outer Diameter [mm]17
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr260
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3171.3552

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3171.3553

Price vat excluded

Calculated price per meter

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001102
Variant1001102
Inner Diameter [mm]10
Outer Diameter [mm]20
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr350
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3179.3568

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3179.3569

Price vat excluded

Calculated price per meter

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001103
Variant1001103
Inner Diameter [mm]13
Outer Diameter [mm]23
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr430
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3172.3554

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3172.3555

Price vat excluded

Calculated price per meter

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001105
Variant1001105
Inner Diameter [mm]19
Outer Diameter [mm]30
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr690
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3174.3558

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3174.3559

Price vat excluded

Calculated price per meter

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001106
Variant1001106
Inner Diameter [mm]25
Outer Diameter [mm]37
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr940
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3175.3560

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3175.3561

Price vat excluded

Calculated price per meter

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001107
Variant1001107
Inner Diameter [mm]32
Outer Diameter [mm]44
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr1020
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3176.3562

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3176.3563

Price vat excluded

Calculated price per meter

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001108
Variant1001108
Inner Diameter [mm]38
Outer Diameter [mm]52
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr1420
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3177.3564

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3177.3565

Price vat excluded

Calculated price per meter

MULTI PURPOSE CASTOR 30 EPDM YELLOW HOSE FOR AIR PRESSURE LIGHT CHEMICALS HOT WATER INPART24 Variant 1001109
Variant1001109
Inner Diameter [mm]50
Outer Diameter [mm]65
Work Pressure - BAR [20°C]30
Burst Pressure - BAR [20°C]90
Weight gr/mtr2320
Coil [mtr]40
buyRow
buyRow

Availability

Trade unit

Meter

ID

339.3178.3566

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

339.3178.3567

Price vat excluded

Calculated price per meter
