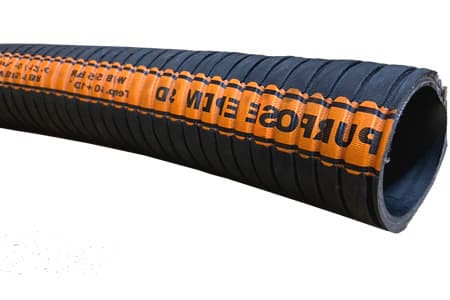

RADIFLEX 120 EPDM SD HOSE

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24
Suction and discharge hose | Reinforcement: Strong textile reinforcement, steel spiral | Inner wall: EPDM | Outer wall: EPDM | Working pressure: 5 BAR | Temperature range: -40°C to +120°C

Product params

Working Pressure [bar]

5

Burst Pressure [bar]

15

Inner Wall

EPDM

Conductivity

No

A highly flexible rubber hose for hot water, glycol, coolant, and light water-based chemicals. Its characteristic feature is the ability to work in very tight spaces where flexibility is crucial. Unlike standard coolant hoses, this hose is reinforced with a steel spiral, allowing for a broader range of applications in various installations. It is often used as a hose for motorboats and motor yachts to transfer cooling water. The outer wall is resistant to abrasion and external conditions, including UV rays, ozone, and the aging process.

Inner wall: EPDM

Outer wall: EPDM

Reinforcement: Strong textile reinforcement, steel spiral

Working pressure: 5 BAR

Temperature range: -40°C to +120°C

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83001624
Variant83001624
Inner Diameter [mm]16
Outer Diameter [mm]24
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]30
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.262.500

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.262.518

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83001826
Variant83001826
Inner Diameter [mm]18
Outer Diameter [mm]26
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]35
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.263.501

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.263.519

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83001929
Variant83001929
Inner Diameter [mm]19
Outer Diameter [mm]29
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]40
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.264.502

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.264.520

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83002028
Variant83002028
Inner Diameter [mm]20
Outer Diameter [mm]28
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]40
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.265.503

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.265.521

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83002230
Variant83002230
Inner Diameter [mm]22
Outer Diameter [mm]30
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]45
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.266.504

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.266.522

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83002533
Variant83002533
Inner Diameter [mm]25
Outer Diameter [mm]33
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]50
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.267.505

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.267.523

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83002836
Variant83002836
Inner Diameter [mm]28
Outer Diameter [mm]36
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]55
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.268.506

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.268.524

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83003038
Variant83003038
Inner Diameter [mm]30
Outer Diameter [mm]38
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]60
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.269.507

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.269.525

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83003242
Variant83003242
Inner Diameter [mm]32
Outer Diameter [mm]42
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]65
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.270.508

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.270.526

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83003545
Variant83003545
Inner Diameter [mm]35
Outer Diameter [mm]45
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]70
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.271.509

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.271.527

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83003848
Variant83003848
Inner Diameter [mm]38
Outer Diameter [mm]48
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]80
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.272.510

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.272.528

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83004050
Variant83004050
Inner Diameter [mm]40
Outer Diameter [mm]50
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]85
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.273.511

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.273.529

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83004252
Variant83004252
Inner Diameter [mm]42
Outer Diameter [mm]52
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]85
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.274.512

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.274.530

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83004555
Variant83004555
Inner Diameter [mm]45
Outer Diameter [mm]55
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]90
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.275.513

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.275.531

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83004858
Variant83004858
Inner Diameter [mm]48
Outer Diameter [mm]58
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]120
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.276.514

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.276.532

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83005161
Variant83005161
Inner Diameter [mm]51
Outer Diameter [mm]61
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]120
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.277.515

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.277.533

Price vat excluded

Calculated price per meter

FLEXIBLE RADIATORE HOSE WITH SPIRAL FOR HOT WATER COOLANT FOR BOATS SHIPS RADIFLEX 120 EPDM SD INPART24 Variant 83005565
Variant83005565
Inner Diameter [mm]55
Outer Diameter [mm]65
Work Pressure - BAR [20°C]5
Burst Pressure - BAR [20°C]15
Bending Radius [mm]140
Coil [mtr]20
buyRow
buyRow

Availability

Trade unit

Meter

ID

34.278.516

Price vat excluded

buyRow

Availability

Trade unit

Coil 20mtr

ID

34.278.534

Price vat excluded

Calculated price per meter
