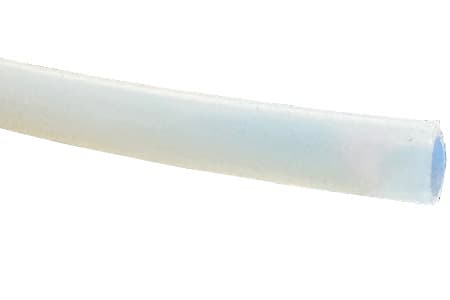

SMOOTH TEFLON PTFE FDA TUBING HOSE
Discharge Hose | Construction: smooth, calibrated | Inner Wall: PTFE | Outer Wall: PTFE | Working Pressure: 10-45 BAR | Temperature Range: -190°C to +260°C
Product params
Working Pressure [bar]
10-45
Construction
smooth PTFE
Conductivity
No
The PTFE tubing hose has very good resistance against high temperatures and highly corrosive chemicals. Fully smooth and calibrated PTFE thanks to special norms is suitable for food branch.
Inner Wall: PTFE
Outer Wall: PTFE
Construction: smooth and calibrated
Working Pressure: 10-45 BAR
Temperature Range: -190°C to +260°C
Norms: EU 10/2011, EU 1935/2004, FDA 21 CFR 177.1550
Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
Availability
Variant500043
Inner Diameter [mm]2
Outer Diameter [mm]3
Work Pressure - BAR [20°C]20
Burst Pressure - BAR [20°C]60
Bending Radius [mm]20
Coil [mtr]50
Availability
🔍
Variant500009
Inner Diameter [mm]2,5
Outer Diameter [mm]3,5
Work Pressure - BAR [20°C]15
Burst Pressure - BAR [20°C]45
Bending Radius [mm]25
Coil [mtr]75
Availability
🔍
Variant500013
Inner Diameter [mm]2
Outer Diameter [mm]4
Work Pressure - BAR [20°C]40
Burst Pressure - BAR [20°C]120
Bending Radius [mm]20
Coil [mtr]100
Availability
🔍
Variant500053
Inner Diameter [mm]4
Outer Diameter [mm]6
Work Pressure - BAR [20°C]20
Burst Pressure - BAR [20°C]60
Bending Radius [mm]35
Coil [mtr]100
Availability
🔍
Variant500001
Inner Diameter [mm]4
Outer Diameter [mm]8
Work Pressure - BAR [20°C]45
Burst Pressure - BAR [20°C]135
Bending Radius [mm]35
Coil [mtr]120
Availability
🔍
Variant500004
Inner Diameter [mm]6
Outer Diameter [mm]8
Work Pressure - BAR [20°C]13
Burst Pressure - BAR [20°C]40
Bending Radius [mm]65
Coil [mtr]100
Availability
🔍
Variant500044
Inner Diameter [mm]7
Outer Diameter [mm]10
Work Pressure - BAR [20°C]22
Burst Pressure - BAR [20°C]67
Bending Radius [mm]70
Coil [mtr]50
Availability
🔍
Variant500014
Inner Diameter [mm]8
Outer Diameter [mm]10
Work Pressure - BAR [20°C]14
Burst Pressure - BAR [20°C]42
Bending Radius [mm]100
Coil [mtr]100
Availability
🔍
Variant500020
Inner Diameter [mm]8,5
Outer Diameter [mm]10
Work Pressure - BAR [20°C]29
Burst Pressure - BAR [20°C]88
Bending Radius [mm]110
Coil [mtr]100
Availability
🔍
Variant500049
Inner Diameter [mm]9
Outer Diameter [mm]12
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]54
Bending Radius [mm]100
Coil [mtr]100
Availability
🔍
Variant500095
Inner Diameter [mm]10
Outer Diameter [mm]12
Work Pressure - BAR [20°C]12
Burst Pressure - BAR [20°C]36
Bending Radius [mm]145
Coil [mtr]25
Availability
🔍
Variant500030
Inner Diameter [mm]12
Outer Diameter [mm]14
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Bending Radius [mm]200
Coil [mtr]100
Availability
🔍
Variant500040
Inner Diameter [mm]13
Outer Diameter [mm]16
Work Pressure - BAR [20°C]12
Burst Pressure - BAR [20°C]36
Bending Radius [mm]170
Coil [mtr]60
Availability
🔍
Variant500052
Inner Diameter [mm]16
Outer Diameter [mm]19
Work Pressure - BAR [20°C]11
Burst Pressure - BAR [20°C]33
Bending Radius [mm]240
Coil [mtr]85
Availability
🔍
