CASTOR® ISO 7751 OHM EPDM BLUE HOSE

Multipurpose black blue rubber hose to hot water air pressure coolant CASTOR ISO 7751 OHM EPDM BLUE INPART24
Discharge hose | Reinforcement: Two textile reinforcement | Inner wall: EPDM | Outer wall: EPDM | Working pressure: 20 BAR | Temperature range: -40°C to +100°C

Product params

Working Pressure [bar]

20

Burst Pressure [bar]

80

Inner Wall

EPDM

Conductivity

Yes

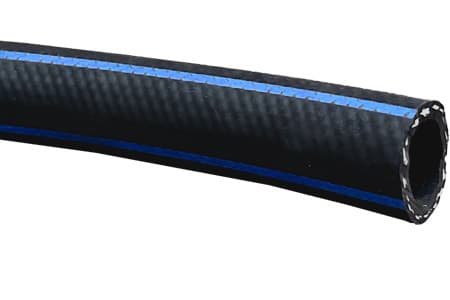

The universal black rubber hose with blue stripes (visible 360°). Suitable to hot water, coolant or compressed air. Often substances in plastic processing, industrial installations and workshops. Torsion resistant, retains full flow meter. Highly solid product, outer layer resistant to abrasions. The hose can be used to transport industrial water, water, glycol, light water chemicals and compressed air.

The hose is conductive, i.e. R<10⁶ Ω through the wall

Inner wall: EPDM

Outer wall: EPDM

Reinforcement: Two textile reinforcement

Working pressure: 20 BAR

Temperature range: -40°C to +100°C

Norms: ISO 7751

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Weight gr/mtr

Coil [mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Weight gr/mtr

Coil [mtr]

Trade unit

Variant

3710

Inner Diameter [mm]

10

Outer Diameter [mm]

17

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

230

Coil [mtr]

40

Trade unit

Meter

Variant

3711

Inner Diameter [mm]

10

Outer Diameter [mm]

17

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

230

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3712

Inner Diameter [mm]

13

Outer Diameter [mm]

20

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

290

Coil [mtr]

40

Trade unit

Meter

Variant

3713

Inner Diameter [mm]

13

Outer Diameter [mm]

20

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

290

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3714

Inner Diameter [mm]

19

Outer Diameter [mm]

31

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

731

Coil [mtr]

40

Trade unit

Meter

Variant

3715

Inner Diameter [mm]

19

Outer Diameter [mm]

31

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

731

Coil [mtr]

40

Trade unit

Coil 40mtr

Variant

3716

Inner Diameter [mm]

25

Outer Diameter [mm]

36

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

870

Coil [mtr]

40

Trade unit

Meter

Variant

3717

Inner Diameter [mm]

25

Outer Diameter [mm]

36

Work Pressure - BAR [20°C]

20

Burst Pressure - BAR [20°C]

80

Weight gr/mtr

870

Coil [mtr]

40

Trade unit

Coil 40mtr

CASTOR® ISO 7751 OHM EPDM BLUE HOSE

from 16.43zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 349

stock
Available
