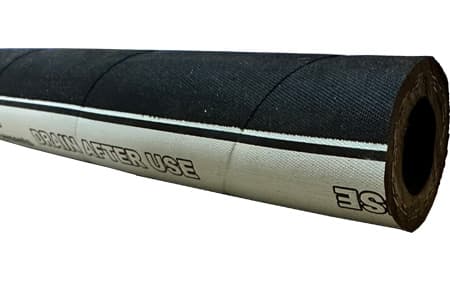

STEAM HP ISO-A 210 HOSE

HOSE FOR SATURATED SUPERHEATED HOSE HIGH PRESSURE ISO A STEAM HP ISO 210 INPART24
Discharge hose | Reinforcement: textile reinforcement, steel reinforcement | Inner wall: CIIR | Outer wall: EPDM | Working pressure: 18 BAR | Temperature range: -40°C to +210°C

Product params

Working Pressure [bar]

18

Burst Pressure [bar]

180

Inner Wall

CIIR

Conductivity

Yes

A very strong, high-pressure rubber hose for conveying superheated and saturated steam. It is manufactured following EN ISO 6134/2A (OHM) norms and is reinforced with textile and steel reinforcements. The inner wall is made of CIIR material (chlorobutyl rubber) through extrusion, exhibiting very low permeability (lower than steam hoses with EPDM inside) and resistance to rubber aging/degradation. The outer wall remains resistant to UV rays, ozone, fats, acids, and is abrasion-resistant. This hose can temporarily transport superheated steam at a temperature of +232°C. The external construction of the hose is microperforated, preventing the "popcorning" effect.

It is essential to dry the hose after use to prevent the accumulation of condensate inside. Also, the hose should not be used simultaneously for water and steam.

Inner wall: CIIR - extruded

Outer wall: EPDM

Reinforcement: Strong textile reinforcement, steel reinforcement

Working pressure: 18 BAR

Conductivity: R<10⁶ Ω

Temperature range: -40°C to +210°C (temporary +232°C for superheated steam)

Norms: EN ISO 6134 cat. A type 2

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
HOSE FOR SATURATED SUPERHEATED HOSE HIGH PRESSURE ISO A STEAM HP ISO 210 INPART24 Variant 84001325
Variant84001325
Inner Diameter [mm]13
Outer Diameter [mm]25
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Bending Radius [mm]130
Coil [mtr]30,5
buyRow
buyRow

Availability

Trade unit

Meter

ID

35.280.536

Price vat excluded

buyRow

Availability

Trade unit

Coil 30,5mtr

ID

35.280.547

Price vat excluded

Calculated price per meter

HOSE FOR SATURATED SUPERHEATED HOSE HIGH PRESSURE ISO A STEAM HP ISO 210 INPART24 Variant 84001933
Variant84001933
Inner Diameter [mm]19
Outer Diameter [mm]33
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Bending Radius [mm]190
Coil [mtr]61
buyRow
buyRow

Availability

Trade unit

Meter

ID

35.281.537

Price vat excluded

buyRow

Availability

Trade unit

Coil 61mtr

ID

35.281.546

Price vat excluded

Calculated price per meter

HOSE FOR SATURATED SUPERHEATED HOSE HIGH PRESSURE ISO A STEAM HP ISO 210 INPART24 Variant 84002540
Variant84002540
Inner Diameter [mm]25
Outer Diameter [mm]40
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Bending Radius [mm]250
Coil [mtr]61
buyRow
buyRow

Availability

Trade unit

Meter

ID

35.282.538

Price vat excluded

buyRow

Availability

Trade unit

Coil 61mtr

ID

35.282.545

Price vat excluded

Calculated price per meter

HOSE FOR SATURATED SUPERHEATED HOSE HIGH PRESSURE ISO A STEAM HP ISO 210 INPART24 Variant 84003248
Variant84003248
Inner Diameter [mm]32
Outer Diameter [mm]48
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Bending Radius [mm]320
Coil [mtr]61
buyRow
buyRow

Availability

Trade unit

Meter

ID

35.283.539

Price vat excluded

buyRow

Availability

Trade unit

Coil 61mtr

ID

35.283.544

Price vat excluded

Calculated price per meter

HOSE FOR SATURATED SUPERHEATED HOSE HIGH PRESSURE ISO A STEAM HP ISO 210 INPART24 Variant 84003854
Variant84003854
Inner Diameter [mm]38
Outer Diameter [mm]54
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Bending Radius [mm]380
Coil [mtr]61
buyRow
buyRow

Availability

Trade unit

Meter

ID

35.284.540

Price vat excluded

buyRow

Availability

Trade unit

Coil 61mtr

ID

35.284.543

Price vat excluded

Calculated price per meter

HOSE FOR SATURATED SUPERHEATED HOSE HIGH PRESSURE ISO A STEAM HP ISO 210 INPART24 Variant 84005069
Variant84005069
Inner Diameter [mm]50
Outer Diameter [mm]69
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Bending Radius [mm]500
Coil [mtr]61
buyRow
buyRow

Availability

Trade unit

Meter

ID

35.285.541

Price vat excluded

buyRow

Availability

Trade unit

Coil 61mtr

ID

35.285.542

Price vat excluded

Calculated price per meter
