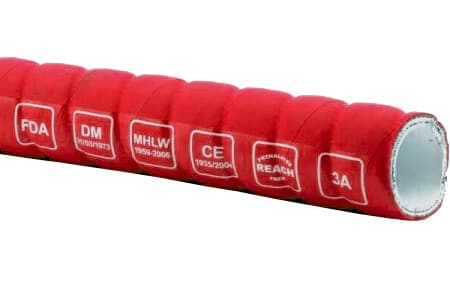

DROPFLEX FOOD RED SD HOSE

Super Flexible Rubber Hose for Alcohol DROPFLEX FOOD RED SD 10 Bar INPART24
Suction and discharge hose | Reinforcement: strong textile reinforcement, double spiral | Inner wall: Butyl/IIR | Outer wall: Butyl | Working pressure: 10 BAR | Temperature range: -40 to +120 °C

Product params

Working Pressure [bar]

10

Burst Pressure [bar]

30

Conductivity

No

Inner Wall

Butyl/IIR

Extremely flexible, rubber hose with corrugated outer wall construction (the bending radius = 1 x inner wall size). Thanks to special RED color, hose is dedicated for Brewery and Wine industries. Suitable for transportation of milk, juices, or alcohols up to 96,5%, reinforced with a double spiral (suction and discharge type). Designed for various applications, including as a transfer hose in dairies for stationary installations, for conveying alcohols in breweries, distilleries, and vineyards. It is also used as a drinking water hose. Thanks to its butyl outer wall, the hose is resistant to animal-based fats and food oils, and its construction remains resistant to abrasion and challenging working conditions. The product is free from phthalates and plasticizers, and it is neutral to the transported medium.

The hose is suitable for sterilization using the CIP (Clean-In-Place) method (+150 °C till 30 minutes).

Inner wall: Butyl/IIR - white

Outer wall: Butyl - red

Reinforcement: textile reinforcement, double steel spiral

Working pressure: 10 BAR

Vacuum: 0,9 BAR

Temperature range: -40°C to +120°C

Norms: FDA 21 CFR 177.2600, DM 21.03.73 E SEGUENTI, 1935/2004/CE, 1907/2006/CE (REACH), 3A Sanitary Standard Class II

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Bending Radius [mm]
Super Flexible Rubber Hose for Alcohol DROPFLEX FOOD RED SD 10 Bar INPART24 Variant 35100025
Variant35100025
Inner Diameter [mm]25
Outer Diameter [mm]37
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]25
buyRow
buyRow

Availability

⚫ 0

Trade unit

Meter

ID

351.3264.3740

Price vat excluded

€44.57
basket
buyRow

Availability

⚫ 0

Trade unit

Coil 40mtr

ID

351.3264.3741

Price vat excluded

€1350.68

Calculated price per meter

€33.77
basket
Super Flexible Rubber Hose for Alcohol DROPFLEX FOOD RED SD 10 Bar INPART24 Variant 35100032
Variant35100032
Inner Diameter [mm]32
Outer Diameter [mm]44
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]32
buyRow
buyRow

Availability

🟢 25

Trade unit

Meter

ID

351.3265.3742

Price vat excluded

€51.94
basket
buyRow

Availability

⚫ 0

Trade unit

Coil 40mtr

ID

351.3265.3743

Price vat excluded

€1573.89

Calculated price per meter

€39.35
basket
Super Flexible Rubber Hose for Alcohol DROPFLEX FOOD RED SD 10 Bar INPART24 Variant 35100038
Variant35100038
Inner Diameter [mm]38
Outer Diameter [mm]50
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]38
buyRow
buyRow

Availability

⚫ 0

Trade unit

Meter

ID

351.3266.3744

Price vat excluded

€57.54
basket
buyRow

Availability

⚫ 0

Trade unit

Coil 40mtr

ID

351.3266.3745

Price vat excluded

€1743.58

Calculated price per meter

€43.59
basket
Super Flexible Rubber Hose for Alcohol DROPFLEX FOOD RED SD 10 Bar INPART24 Variant 35100050
Variant35100050
Inner Diameter [mm]50
Outer Diameter [mm]63
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]50
buyRow
buyRow

Availability

🟢 109

Trade unit

Meter

ID

351.3267.3746

Price vat excluded

€74.37
basket
buyRow

Availability

🟡 2

Trade unit

Coil 40mtr

ID

351.3267.3747

Price vat excluded

€2241.25

Calculated price per meter

€56.03
basket
Super Flexible Rubber Hose for Alcohol DROPFLEX FOOD RED SD 10 Bar INPART24 Variant 35100063
Variant35100063
Inner Diameter [mm]63,5
Outer Diameter [mm]76.5
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]63.5
buyRow
buyRow

Availability

🟢 88

Trade unit

Meter

ID

351.3268.3748

Price vat excluded

€83.17
basket
buyRow

Availability

🟡 1

Trade unit

Coil 40mtr

ID

351.3268.3749

Price vat excluded

€2520.28

Calculated price per meter

€63.01
basket
Super Flexible Rubber Hose for Alcohol DROPFLEX FOOD RED SD 10 Bar INPART24 Variant 35100075
Variant35100075
Inner Diameter [mm]75
Outer Diameter [mm]90
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]75
buyRow
buyRow

Availability

🟢 9

Trade unit

Meter

ID

351.3269.3750

Price vat excluded

€103.90
basket
buyRow

Availability

⚫ 0

Trade unit

Coil 40mtr

ID

351.3269.3751

Price vat excluded

€3246.32

Calculated price per meter

€81.16
basket

DROPFLEX FOOD RED SD HOSE

from €44.57
vat excluded

stock
Availabledropdown
intereurope shipping
Shipping all over Europe
free delivery
Free shipping from 1000 EUR
high quality
Top quality product
sku
SKU: 351  opis
