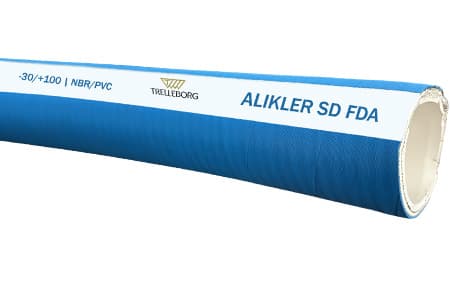

FOOD HOSE LACTERA ALIKLER SD NBR

Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24
Suction and discharge hose | Reinforcement: two synthetic textile reinforcements | Inner wall: NBR | Outer wall: NBR | Working pressure: 10 BAR | Temperature range: -30 to +100 °C

Product params

Working Pressure [bar]

10

Burst Pressure [bar]

30

Conductivity

No

Inner Wall

NBR

Flexible and easy to handle, dairy rubber hose with spiral and smooth construction. Thanks to NBR inner wall the hose is suitable for fatty products. Also for milk, wine, beers, cyder, fruit juices, and alcohol up to 95%.

The hose is suitable for sterilization using the CIP (Clean-In-Place) method, and steam method up to +130°C (for short periods).

Inner wall: NBR - white

Outer wall: NBR-PVC

Reinforcement: textile reinforcement, steel spiral

Working pressure: 10 BAR

Temperature range: -30°C to +100°C

Norms: BfR XXI cat 2, EU 2023/2006, EU regulation nr. 1935/2004, FDA 21 CFR 177.2600, French legislation

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Vacuum
Bending Radius [mm]
Weight [g]
Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24 Variant 1510705
Variant1510705
Inner Diameter [mm]25
Outer Diameter [mm]37
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum90%
Bending Radius [mm]40
Weight [g]920
buyRow
buyRow

Availability

Trade unit

Meter

ID

354.3292.3796

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

354.3292.3797

Price vat excluded

Calculated price per meter

Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24 Variant 1510707
Variant1510707
Inner Diameter [mm]32
Outer Diameter [mm]44
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum90%
Bending Radius [mm]55
Weight [g]1100
buyRow
buyRow

Availability

Trade unit

Meter

ID

354.3293.3798

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

354.3293.3799

Price vat excluded

Calculated price per meter

Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24 Variant 1510706
Variant1510706
Inner Diameter [mm]38
Outer Diameter [mm]50
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum90%
Bending Radius [mm]65
Weight [g]1260
buyRow
buyRow

Availability

Trade unit

Meter

ID

354.3294.3800

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

354.3294.3801

Price vat excluded

Calculated price per meter

Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24 Variant 1510701
Variant1510701
Inner Diameter [mm]50
Outer Diameter [mm]65
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum90%
Bending Radius [mm]100
Weight [g]1770
buyRow
buyRow

Availability

Trade unit

Meter

ID

354.3295.3802

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

354.3295.3803

Price vat excluded

Calculated price per meter

Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24 Variant 1510003
Variant1510003
Inner Diameter [mm]63
Outer Diameter [mm]76
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum90%
Bending Radius [mm]135
Weight [g]2240
buyRow
buyRow

Availability

Trade unit

Meter

ID

354.3296.3804

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

354.3296.3805

Price vat excluded

Calculated price per meter

Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24 Variant 1510703
Variant1510703
Inner Diameter [mm]75
Outer Diameter [mm]89
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum90%
Bending Radius [mm]190
Weight [g]3290
buyRow
buyRow

Availability

Trade unit

Meter

ID

354.3297.3806

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

354.3297.3807

Price vat excluded

Calculated price per meter

Rubber food hose for fatty products milk Lactera ALIKLER NBR Trelleborg Inpart24 Variant 1510704
Variant1510704
Inner Diameter [mm]100
Outer Diameter [mm]115
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum90%
Bending Radius [mm]400
Weight [g]4400
buyRow
buyRow

Availability

Trade unit

Meter

ID

354.3298.3808

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

354.3298.3809

Price vat excluded

Calculated price per meter
