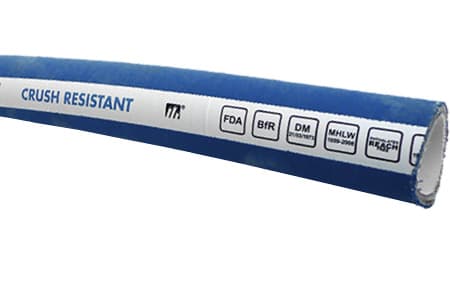

MILK CRUSHRESIST SD NBR HOSE WITH PLASTIC SPIRAL

Milk crushresist sd nbr hose with plastic spiral Inpart24
Suction and discharge hose | Reinforcement: plastic PET spiral | Inner wall: NBR | Outer wall: NBR-PVC | Working pressure: 10 BAR | Temperature range: -25 to +80 °C

Product params

Working Pressure [bar]

10

Burst Pressure [bar]

30

Conductivity

No

Inner Wall

NBR

Rubber milk collecting hose with the PET spiral crush resistance. Suitable for the fattys, juices, beer, wine, and alcohol up to 50%. The hose is a great solution to prevent damage running a vehicle wheel over the hose.

The hose is suitable for sterilization using the CIP (Clean-In-Place) method.

Inner wall: NBR

Outer wall: NBR-PVC

Reinforcement: textile reinforcement, plastic PET spiral

Working pressure: 10 BAR

Temperature range: -25°C to +80°C

Norms: 3A Sanitary Standard Class II, BfR recommendation XXI cat. 2, EU regulation nr. 1935/2004, FDA 21 CFR 177.2600

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Vacuum
Bending Radius [mm]
Weight [g]
Milk crushresist sd nbr hose with plastic spiral Inpart24 Variant 1510179
Variant1510179
Inner Diameter [mm]32
Outer Diameter [mm]46
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum70%
Bending Radius [mm]115
Weight [g]1120
buyRow
buyRow

Availability

Trade unit

Meter

ID

355.3302.3816

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

355.3302.3817

Price vat excluded

Calculated price per meter

Milk crushresist sd nbr hose with plastic spiral Inpart24 Variant 1510180
Variant1510180
Inner Diameter [mm]38
Outer Diameter [mm]54
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum70%
Bending Radius [mm]170
Weight [g]1580
buyRow
buyRow

Availability

Trade unit

Meter

ID

355.3303.3818

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

355.3303.3819

Price vat excluded

Calculated price per meter

Milk crushresist sd nbr hose with plastic spiral Inpart24 Variant 1510181
Variant1510181
Inner Diameter [mm]51
Outer Diameter [mm]67
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum70%
Bending Radius [mm]240
Weight [g]2000
buyRow
buyRow

Availability

Trade unit

Meter

ID

355.3304.3820

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

355.3304.3821

Price vat excluded

Calculated price per meter

Milk crushresist sd nbr hose with plastic spiral Inpart24 Variant 1510182
Variant1510182
Inner Diameter [mm]63
Outer Diameter [mm]82
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum70%
Bending Radius [mm]310
Weight [g]2700
buyRow
buyRow

Availability

Trade unit

Meter

ID

355.3305.3822

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

355.3305.3823

Price vat excluded

Calculated price per meter

Milk crushresist sd nbr hose with plastic spiral Inpart24 Variant 1510183
Variant1510183
Inner Diameter [mm]76
Outer Diameter [mm]94
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Vacuum70%
Bending Radius [mm]380
Weight [g]3150
buyRow
buyRow

Availability

Trade unit

Meter

ID

355.3306.3824

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

355.3306.3825

Price vat excluded

Calculated price per meter
