STEAM HP RED 210 EPDM HOSE

EPDM RUBBER HOSE FOR SATURATED STEAM HIGH PRESSURE STEAM HP RED 210 EPDM INPART24
Discharge hose | Reinforcement: textile reinforcement, steel reinforcement | Inner wall: EPDM | Outer wall: EPDM | Working pressure: 18 BAR | Temperature range: -40°C to +210°C

Product params

Working Pressure [bar]

18

Burst Pressure [bar]

180

Inner Wall

EPDM

Conductivity

No

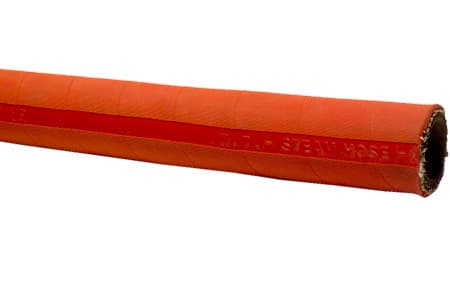

A robust red rubber hose for conveying saturated and superheated steam. Thanks to the use of EPDM rubber inside the tube, the hose performs well in the chemical industry. The outer wall remains resistant to UV rays, ozone, various chemicals, and is abrasion-resistant. This hose can temporarily transport superheated steam at temperatures up to +232°C. The external construction of the hose is microperforated, preventing the "popcorning" effect. The hose is also widely used for conveying hot water and chemically aggressive fluids.

It is important to always dry the hose after use to prevent condensate buildup inside. Additionally, the hose should not be used simultaneously for water and steam.

Inner wall: EPDM

Outer wall: Red EPDM

Reinforcement: Strong textile reinforcement, steel reinforcement

Working pressure: 18 BAR

Temperature range: -40°C to +210°C (temporary +232°C for superheated steam)

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
EPDM RUBBER HOSE FOR SATURATED STEAM HIGH PRESSURE STEAM HP RED 210 EPDM INPART24 Variant 85005167
Variant85005167
Inner Diameter [mm]51
Outer Diameter [mm]67
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Coil [mtr]61
buyRow
buyRow

Availability

Trade unit

Meter

ID

36.292.550

Price vat excluded

buyRow

Availability

Trade unit

Coil 61mtr

ID

36.292.563

Price vat excluded

Calculated price per meter

EPDM RUBBER HOSE FOR SATURATED STEAM HIGH PRESSURE STEAM HP RED 210 EPDM INPART24 Variant 85006381
Variant85006381
Inner Diameter [mm]63
Outer Diameter [mm]81
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Coil [mtr]30,5
buyRow
buyRow

Availability

Trade unit

Meter

ID

36.293.549

Price vat excluded

buyRow

Availability

Trade unit

Coil 30,5mtr

ID

36.293.564

Price vat excluded

Calculated price per meter

EPDM RUBBER HOSE FOR SATURATED STEAM HIGH PRESSURE STEAM HP RED 210 EPDM INPART24 Variant 85007696
Variant85007696
Inner Diameter [mm]76
Outer Diameter [mm]96
Work Pressure - BAR [20°C]18
Burst Pressure - BAR [20°C]180
Coil [mtr]30,5
buyRow
buyRow

Availability

Trade unit

Meter

ID

36.294.548

Price vat excluded

buyRow

Availability

Trade unit

Coil 30,5mtr

ID

36.294.565

Price vat excluded

Calculated price per meter
