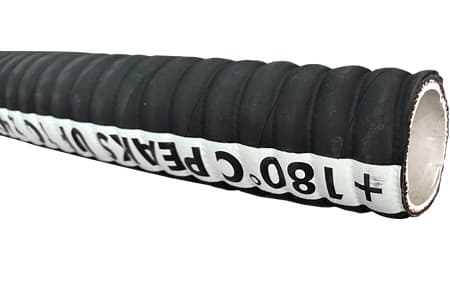

SILO FLEX FOOD SD 180 EPDM HOSE
Suction and Discharge Hose | Reinforcement: two textile reinforcement, steel spiral | Inner Wall: white EPDM | Outer Wall: EPDM - corrugated | Working pressure: 6-10 BAR | Temperature range: -40 to +180 °C
Product params
Working Pressure [bar]
6-10
Inner Wall
EPDM - white
Food
Yes
This high-flexible hot air hose is dedicated as the compressor hose in the silo truck (hot air blower). Thanks to special norms, it is suitable for food-grade contact. The inner tube is white, and the outer construction is corrugated.
Inner Wall: EPDM - white
Outer Wall: EPDM - corrugated
Reinforcement: two textile reinforcement, steel spiral
Working pressure: 6-10 BAR
Temperature Range: -40°C to +180°C
Norms: FDA, BgVV Type II
Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Vacuum - BAR [20°C]
Bending Radius [mm]
Weight [g/m]
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Vacuum - BAR [20°C]
Bending Radius [mm]
Weight [g/m]
Availability
Variant1110321
Inner Diameter [mm]51
Outer Diameter [mm]62
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]40
Coil [mtr]40
Vacuum - BAR [20°C]0,9
Bending Radius [mm]100
Weight [g/m]1920
Availability
🔍
Variant1110322
Inner Diameter [mm]60
Outer Diameter [mm]71
Work Pressure - BAR [20°C]8
Burst Pressure - BAR [20°C]32
Coil [mtr]40
Vacuum - BAR [20°C]0,9
Bending Radius [mm]120
Weight [g/m]2210
Availability
🔍
Variant1110323
Inner Diameter [mm]76
Outer Diameter [mm]87
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]24
Coil [mtr]40
Vacuum - BAR [20°C]0,8
Bending Radius [mm]150
Weight [g/m]2930
Availability
🔍
Variant1110324
Inner Diameter [mm]90
Outer Diameter [mm]102
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]24
Coil [mtr]40
Vacuum - BAR [20°C]0,8
Bending Radius [mm]180
Weight [g/m]3700
Availability
🔍
Variant1110325
Inner Diameter [mm]102
Outer Diameter [mm]114
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]24
Coil [mtr]40
Vacuum - BAR [20°C]0,8
Bending Radius [mm]300
Weight [g/m]4580
Availability
🔍
