MASTER-FORM ECO 100 EPDM HOSE

COOLING HOSE EPDM HOT WATER RED BLUE MASTER FORM ECO 100 INPART24
Discharge hose | Reinforcement: Strong textile reinforcement | Inner wall: EPDM | Outer wall: EPDM | Working pressure: 10 BAR | Temperature range: -20°C to +100°C | Coils: 40 MTR

Product params

Working Pressure [bar]

10

Burst Pressure [bar]

30

Inner Wall

EPDM

Conductivity

No

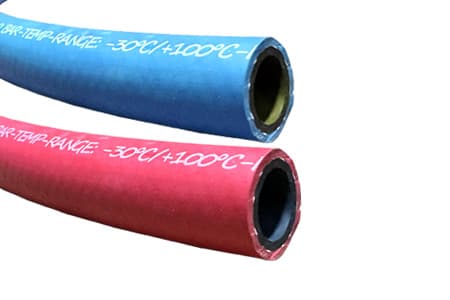

A versatile red or blue rubber hose for hot water, glycol, and air. The ECO version is tailored for plastic processors where the coolant temperature typically does not exceed +90°C. At the same time, the hose maintains all quality parameters, including an outer wall resistant to abrasion, UV rays, and ozone. It is highly flexible and maintains full flow even in bends and curves (for very tight and short connections on bridges, we recommend the MASTER-FORM HP 140 hose). The hose is fully compatible with all popular quick coupling systems for injection molds.

Inner wall: EPDM
Outer wall: EPDM
Reinforcement: Strong textile reinforcement
Working pressure: 10 BAR
Temperature range: -20°C to +100°C

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Colour

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Coil [mtr]

Colour

Trade unit

Variant

679

Inner Diameter [mm]

9,5

Outer Diameter [mm]

15,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Red

Trade unit

Coil 40mtr

Variant

3662

Inner Diameter [mm]

9,5

Outer Diameter [mm]

15,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Red

Trade unit

Meter

Variant

678

Inner Diameter [mm]

9,5

Outer Diameter [mm]

15,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Blue

Trade unit

Coil 40mtr

Variant

3663

Inner Diameter [mm]

9,5

Outer Diameter [mm]

15,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Blue

Trade unit

Meter

Variant

677

Inner Diameter [mm]

12,5

Outer Diameter [mm]

18,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Red

Trade unit

Coil 40mtr

Variant

3664

Inner Diameter [mm]

12,5

Outer Diameter [mm]

18,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Red

Trade unit

Meter

Variant

3374

Inner Diameter [mm]

12,5

Outer Diameter [mm]

18,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Blue

Trade unit

Coil 40mtr

Variant

3665

Inner Diameter [mm]

12,5

Outer Diameter [mm]

18,5

Work Pressure - BAR [20°C]

10

Burst Pressure - BAR [20°C]

30

Coil [mtr]

40

Colour

Blue

Trade unit

Meter
