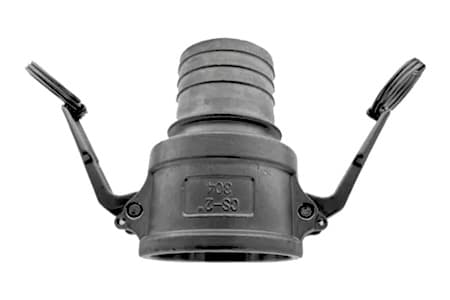

CAMLOCK COUPLING TYPE CS - SS 304

CAMLOCK TYPE CS WITH CORRUGATED HOSE TAIL FOR SAFETY CLAMPS SS 304 INPART24
CAMLOCK COUPLING TYPE CS | SERRATED HOSETAIL (SHELL CLAMPS ONLY) | 16 BAR | STAINLESS STEEL AISI 304 | SEALING RING: NBR

Product params

Material

AISI 304

Hosetail

serrated (shell clamps only)

Sealing Ring

NBR

Female CAMLOCK coupling type CS with a serrated hosetail attached only on shell clamps. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

Variant

Size

Material

Hosetail

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

Size

Material

Hosetail

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

721

Size

1" (DN25)

Material

SS304

Hosetail

25

Seal material

NBR

Work Pressure - BAR [20°C]

16

Weight [kg]

0,35

Trade unit

pcs

Variant

722

Size

1 1/4" (DN32)

Material

SS304

Hosetail

32

Seal material

NBR

Work Pressure - BAR [20°C]

16

Weight [kg]

0,59

Trade unit

pcs

Variant

723

Size

1 1/2" (DN40)

Material

SS304

Hosetail

38

Seal material

NBR

Work Pressure - BAR [20°C]

16

Weight [kg]

0,68

Trade unit

pcs

Variant

724

Size

2" (DN50)

Material

SS304

Hosetail

50

Seal material

NBR

Work Pressure - BAR [20°C]

16

Weight [kg]

0,9

Trade unit

pcs

Variant

725

Size

2 1/2" (DN65)

Material

SS304

Hosetail

63

Seal material

NBR

Work Pressure - BAR [20°C]

16

Weight [kg]

1,24

Trade unit

pcs

Variant

726

Size

3" (DN80)

Material

SS304

Hosetail

75

Seal material

NBR

Work Pressure - BAR [20°C]

16

Weight [kg]

1,57

Trade unit

pcs

Variant

727

Size

4" (DN100)

Material

SS304

Hosetail

100

Seal material

NBR

Work Pressure - BAR [20°C]

12

Weight [kg]

2,59

Trade unit

pcs
