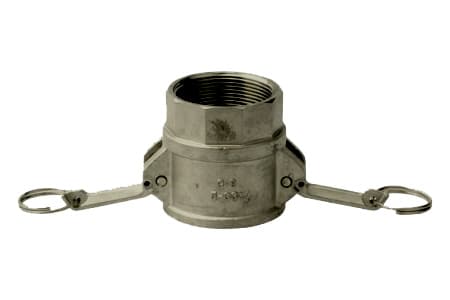

CAMLOCK COUPLING TYPE D - SS 316

CAMLOCK TYPE D FEMALE PART WITH FEMALE THREAD FROM STANLEES STEEL AISI 316 INPART24
CAMLOCK COUPLING TYPE D | INTERNAL BSP THREAD | 18 BAR | STAINLESS STEEL AISI 316 | SEALING RING: NBR

Product params

Material

AISI 316

Internal Thread

BSP

Sealing Ring

NBR

Female CAMLOCK coupling type D with internal BSP thread. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

id

Variant

Size

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Variant
Size
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantD015SS
Size1/2" (DN15)
MaterialSS316
Thread connection1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,13
Availability
🔍
VariantD020SS
Size3/4" (DN20)
MaterialSS316
Thread connection3/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,23
Availability
🔍
VariantD025SS
Size1" (DN25)
MaterialSS316
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,31
Availability
🔍
VariantD032SS
Size1 1/4" (DN32)
MaterialSS316
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,49
Availability
🔍
VariantD040SS
Size1 1/2" (DN40)
MaterialSS316
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,55
Availability
🔍
VariantD050SS
Size2" (DN50)
MaterialSS316
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]17
Weight [kg]0,6
Availability
🔍
VariantD065SS
Size2 1/2" (DN65)
MaterialSS316
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]11
Weight [kg]1
Availability
🔍
VariantD080SS
Size3" (DN80)
MaterialSS316
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]9
Weight [kg]1,3
Availability
🔍
VariantD100SS
Size4" (DN100)
MaterialSS316
Thread connection4" Female
Seal materialNBR
Work Pressure - BAR [20°C]7
Weight [kg]2,14
Availability
🔍
VariantD125SS
Size5" (DN125)
MaterialSS316
Thread connection5" Female
Seal materialNBR
Work Pressure - BAR [20°C]5
Weight [kg]4,61
Availability
🔍
VariantD150SS
Size6" (DN150)
MaterialSS316
Thread connection6" Female
Seal materialNBR
Work Pressure - BAR [20°C]5
Weight [kg]6,5
Availability
🔍
