CAMLOCK COUPLING TYPE DC - SS 316

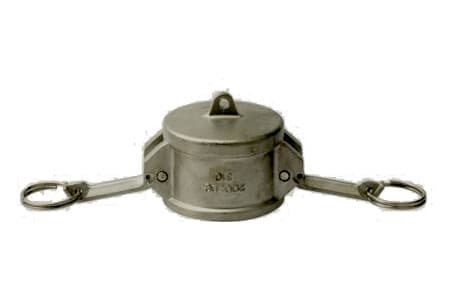

CAMLOCK TYPE DC DUST CAP FEMALE PART STAINLESS STEEL AISI 316 INPART24
CAMLOCK COUPLING TYPE DC | FEMALE CAP | 18 BAR | STAINLESS STEEL AISI 316 | SEALING RING: NBR

Product params

Material

AISI 316

Sealing Ring

NBR

Female cap CAMLOCK coupling type DC. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

id

Variant

Size

Material

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Variant
Size
Material
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantDC015SS
Size1/2" (DN15)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,13
Availability
🔍
VariantDC020SS
Size3/4" (DN20)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,18
Availability
🔍
VariantDC025SS
Size1" (DN25)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,25
Availability
🔍
VariantDC032SS
Size1 1/4" (DN32)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,43
Availability
🔍
VariantDC040SS
Size1 1/2" (DN40)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,43
Availability
🔍
VariantDC050SS
Size2" (DN50)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]11
Weight [kg]0,76
Availability
🔍
VariantDC065SS
Size2 1/2" (DN65)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]11
Weight [kg]0,84
Availability
🔍
VariantDC080SS
Size3" (DN80)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]9
Weight [kg]1,01
Availability
🔍
VariantDC100SS
Size4" (DN100)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]7
Weight [kg]1,73
Availability
🔍
VariantDC125SS
Size5" (DN125)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]5
Weight [kg]2,74
Availability
🔍
VariantDC150SS
Size6" (DN150)
MaterialSS316
Seal materialNBR
Work Pressure - BAR [20°C]5
Weight [kg]4,28
Availability
🔍
