CAMLOCK COUPLING TYPE DP - SS 316

CAMLOCK TYPE DC MALE DUST PLUG FROM STAINLESS STEEL AISI 316 INPART24
CAMLOCK COUPLING TYPE DP | BLANKING PLUG | 18 BAR | STAINLESS STEEL AISI 316

Product params

Material

AISI 316

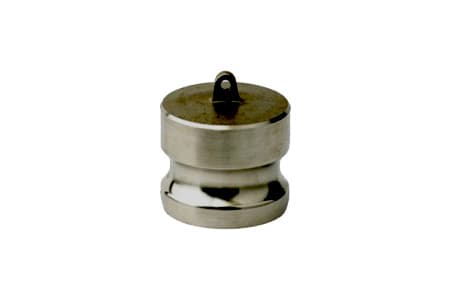

Male CAMLOCK coupling type DP with blanking plug. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

id

Variant

Size

Material

Work Pressure - BAR [20°C]

Weight [kg]

Variant
Size
Material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantDP015SS
Size1/2" (DN15)
MaterialSS316
Work Pressure - BAR [20°C]10
Weight [kg]0,06
Availability
🔍
VariantDP020SS
Size3/4" (DN20)
MaterialSS316
Work Pressure - BAR [20°C]18
Weight [kg]0,08
Availability
🔍
VariantDP025SS
Size1" (DN25)
MaterialSS316
Work Pressure - BAR [20°C]18
Weight [kg]0,13
Availability
🔍
VariantDP032SS
Size1 1/4" (DN32)
MaterialSS316
Work Pressure - BAR [20°C]18
Weight [kg]0,25
Availability
🔍
VariantDP040SS
Size1 1/2" (DN40)
MaterialSS316
Work Pressure - BAR [20°C]18
Weight [kg]0,32
Availability
🔍
VariantDP050SS
Size2" (DN50)
MaterialSS316
Work Pressure - BAR [20°C]18
Weight [kg]0,46
Availability
🔍
VariantDP065SS
Size2 1/2" (DN65)
MaterialSS316
Work Pressure - BAR [20°C]11
Weight [kg]0,67
Availability
🔍
VariantDP075SS
Size3" (DN75)
MaterialSS316
Work Pressure - BAR [20°C]9
Weight [kg]0,93
Availability
🔍
VariantDP100SS
Size4" (DN100)
MaterialSS316
Work Pressure - BAR [20°C]7
Weight [kg]1,59
Availability
🔍
VariantDP125SS
Size5" (DN125)
MaterialSS316
Work Pressure - BAR [20°C]7
Weight [kg]1,9
Availability
🔍
VariantDP150SS
Size6" (DN150)
MaterialSS316
Work Pressure - BAR [20°C]7
Weight [kg]3,84
Availability
🔍
