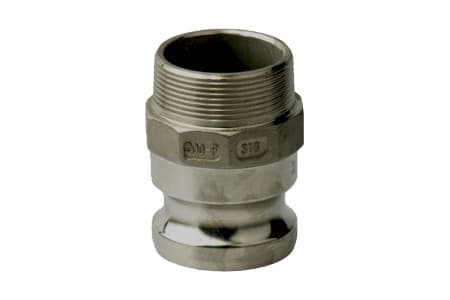

CAMLOCK COUPLING TYPE F - SS 316

CAMLOCK TYPE F MALE PART WITH MALE THREAD BSP NPT STAINLESS STEEL AISI 316 INPART24
CAMLOCK COUPLING TYPE F | EXTERNAL BSP THREAD | 18 BAR | STAINLESS STEEL AISI 316

Product params

Material

AISI 316

External Thread

BSP

Male CAMLOCK coupling type F with external BSP thread. Made according to the US norm MIL-C-27847 (A-A-59326). This is one of the most popular industrial quick coupling systems used in Europe. These couplings are designed for quick and safe connections between the hose and the installation. They are used in loading systems, the chemical industry, and many other industrial sectors.

Size chart

Variant

Size

Material

Thread connection

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

Size

Material

Thread connection

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

799

Size

1/2" (DN15)

Material

SS316

Thread connection

1/2" Male

Work Pressure - BAR [20°C]

10

Weight [kg]

0,09

Trade unit

pcs

Variant

800

Size

3/4" (DN20)

Material

SS316

Thread connection

3/4" Male

Work Pressure - BAR [20°C]

18

Weight [kg]

0,16

Trade unit

pcs

Variant

801

Size

1" (DN25)

Material

SS316

Thread connection

1" Male

Work Pressure - BAR [20°C]

18

Weight [kg]

0,26

Trade unit

pcs

Variant

802

Size

1 1/4" (DN32)

Material

SS316

Thread connection

1 1/4" Male

Work Pressure - BAR [20°C]

18

Weight [kg]

0,4

Trade unit

pcs

Variant

803

Size

1 1/2" (DN40)

Material

SS316

Thread connection

1 1/2" Male

Work Pressure - BAR [20°C]

17

Weight [kg]

0,52

Trade unit

pcs

Variant

804

Size

2" (DN50)

Material

SS316

Thread connection

2" Male

Work Pressure - BAR [20°C]

17

Weight [kg]

0,69

Trade unit

pcs

Variant

806

Size

2 1/2" (DN65)

Material

SS316

Thread connection

2 1/2" Male

Work Pressure - BAR [20°C]

10

Weight [kg]

0,98

Trade unit

pcs

Variant

807

Size

3" (DN80)

Material

SS316

Thread connection

3" Male

Work Pressure - BAR [20°C]

14

Weight [kg]

1,42

Trade unit

pcs

Variant

808

Size

4" (DN100)

Material

SS316

Thread connection

4" Male

Work Pressure - BAR [20°C]

10

Weight [kg]

2,52

Trade unit

pcs

Variant

809

Size

5" (DN125)

Material

SS316

Thread connection

5" Male

Work Pressure - BAR [20°C]

7

Weight [kg]

5,38

Trade unit

pcs

Variant

810

Size

6" (DN150)

Material

SS316

Thread connection

6" Male

Work Pressure - BAR [20°C]

7

Weight [kg]

7

Trade unit

pcs

CAMLOCK COUPLING TYPE F - SS 316

from 31.77zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 53

stock
Available
