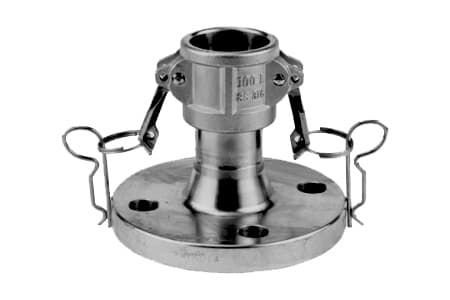

FEMALE FLANGED CAMLOCK COUPLING FLB - SS 316

CAMLOCK TYPE FLB FEMALE PART WITH FIXED FLANGE EN 1092 STAINLESS STEEL AISI 316 INPART24
FEMALE CAMLOCK COUPLING TYPE FLB | FIXED FLANGE PN10/16 | 18 BAR | STAINLESS STEEL AISI 316 |

Product params

Female CAMLOCK coupling type FLB with NBR gasket, ended by fixed flange PN10/16, EN 1092-02/04 norm and made following US norm MIL-C-27847 (A-A-59326). CAMLOCK system is the most common industrial coupling in the world using to quick and safe connections between the hose and the installation. They are very popular in different branches, e.g. petrochemicals, construction, HVAC, or food grade companies.

Size chart

Variant

Size

Material

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

Size

Material

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

817

Size

1/2" (DN15)

Material

SS316

Seal material

NBR

Work Pressure - BAR [20°C]

11

Weight [kg]

0,92

Trade unit

pcs

Variant

818

Size

3/4" (DN20)

Material

SS316

Seal material

NBR

Work Pressure - BAR [20°C]

18

Weight [kg]

1,16

Trade unit

pcs

Variant

819

Size

1" (DN25)

Material

SS316

Seal material

NBR

Work Pressure - BAR [20°C]

18

Weight [kg]

1,39

Trade unit

pcs

Variant

820

Size

1 1/2" (DN40)

Material

SS316

Seal material

NBR

Work Pressure - BAR [20°C]

18

Weight [kg]

2,54

Trade unit

pcs

Variant

821

Size

2" (DN50)

Material

SS316

Seal material

NBR

Work Pressure - BAR [20°C]

18

Weight [kg]

3,49

Trade unit

pcs

Variant

822

Size

4" (DN100)

Material

SS316

Seal material

NBR

Work Pressure - BAR [20°C]

7

Weight [kg]

7,01

Trade unit

pcs

Variant

823

Size

5" (DN125)

Material

SS316

Seal material

NBR

Work Pressure - BAR [20°C]

7

Weight [kg]

12,56

Trade unit

pcs
