CAMLOCK COUPLING TYPE D - ALUMINUM
CAMLOCK COUPLING TYPE D | INTERNAL BSP THREAD | 18 BAR | ALUMINUM | SEALING RING: NBR
Product params
Material
Aluminum
Internal Thread
BSP
Sealing Ring
NBR

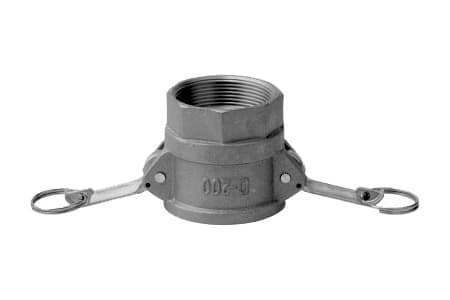

Female CAMLOCK coupling type D with internal BSP thread. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.
Size chart
Variant
Size
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Variant
Size
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantD015AL
Size1/2" (DN15)
MaterialAluminum
Thread connection1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,06
Availability
🔍
VariantD020AL
Size3/4" (DN20)
MaterialAluminum
Thread connection3/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,12
Availability
🔍
VariantD025AL
Size1" (DN25)
MaterialAluminum
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,16
Availability
🔍
VariantD032AL
Size1 1/4" (DN32)
MaterialAluminum
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,28
Availability
🔍
VariantD040AL
Size1 1/2" (DN40)
MaterialAluminum
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,32
Availability
🔍
VariantD050AL
Size2" (DN50)
MaterialAluminum
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,36
Availability
🔍
VariantD065AL
Size2 1/2" (DN65)
MaterialAluminum
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]11
Weight [kg]0,47
Availability
🔍
VariantD080AL
Size3" (DN80)
MaterialAluminum
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]9
Weight [kg]0,73
Availability
🔍
VariantD100AL
Size4" (DN100)
MaterialAluminum
Thread connection4" Female
Seal materialNBR
Work Pressure - BAR [20°C]7
Weight [kg]1,21
Availability
🔍
VariantD125AL
Size5" (DN125)
MaterialAluminum
Thread connection5" Female
Seal materialNBR
Work Pressure - BAR [20°C]5
Weight [kg]1,4
Availability
🔍
VariantD150AL
Size6" (DN150)
MaterialAluminum
Thread connection6" Female
Seal materialNBR
Work Pressure - BAR [20°C]5
Weight [kg]2,16
Availability
🔍
