CAMLOCK COUPLING TYPE A - POLYPROPYLENE

CAMLOCK TYPE A MALE PART WITH FEMALE THREADE POLIPROPYLENE PP INPART24
CAMLOCK COUPLING TYPE A | INTERNAL BSP THREAD | 18 BAR | POLIPROPYLENE |

Product params

Material

Polipropylen

Internal Thread

BSP

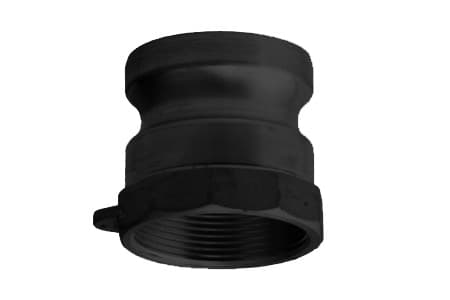

Male CAMLOCK coupling type A with internal BSP thread. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

Variant

Size

Material

Thread connection

Work Pressure - BAR [20°C]

Weight [g]

Variant
Size
Material
Thread connection
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantA015PP
Size1/2" (DN15)
MaterialPP
Thread connection1/2" Female
Work Pressure - BAR [20°C]7
Weight [g]20
Availability
🔍
VariantA020PP
Size3/4" (DN20)
MaterialPP
Thread connection3/4" Female
Work Pressure - BAR [20°C]7
Weight [g]25
Availability
🔍
VariantA025PP
Size1" (DN25)
MaterialPP
Thread connection1" Female
Work Pressure - BAR [20°C]7
Weight [g]30
Availability
🔍
VariantA032PP
Size1 1/4"(DN32)
MaterialPP
Thread connection1 1/4" Female
Work Pressure - BAR [20°C]7
Weight [g]58
Availability
🔍
VariantA040PP
Size1 1/2" (DN40)
MaterialPP
Thread connection1 1/2" Female
Work Pressure - BAR [20°C]7
Weight [g]70
Availability
🔍
VariantA050PP
Size2" (DN50)
MaterialPP
Thread connection2" Female
Work Pressure - BAR [20°C]7
Weight [g]90
Availability
🔍
VariantA080PP
Size3" (DN80)
MaterialPP
Thread connection3" Female
Work Pressure - BAR [20°C]4
Weight [g]210
Availability
🔍
VariantA100PP
Size4" (DN100)
MaterialPP
Thread connection4" Female
Work Pressure - BAR [20°C]3
Weight [g]360
Availability
🔍
