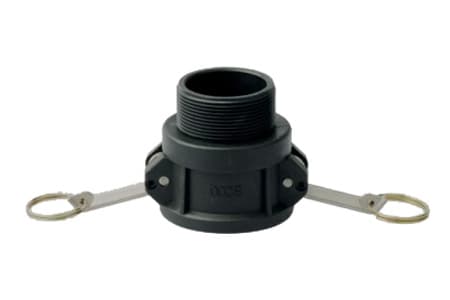

CAMLOCK COUPLING TYPE B - POLYPROPYLENE

CAMLOCK TYPE B FEMALE PART WITH MALE THREAD FROM POLIPROPYLENE PP INPART24
CAMLOCK COUPLING TYPE B | EXTERNAL BSP THREAD | 18 BAR | POLIPROPYLENE | SEALING RING: NBR

Product params

Material

Polipropylene

External Thread

BSP

Sealing Ring

NBR

Female CAMLOCK coupling type B with external BSP thread. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

Variant

Size

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

Size

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Weight [g]

Trade unit

Variant

931

Size

3/4" (DN20)

Material

PP

Thread connection

3/4" Male

Seal material

EPDM

Work Pressure - BAR [20°C]

7

Weight [g]

80

Trade unit

pcs

Variant

932

Size

1" (DN25)

Material

PP

Thread connection

1" Male

Seal material

EPDM

Work Pressure - BAR [20°C]

7

Weight [g]

110

Trade unit

pcs

Variant

933

Size

1 1/4" (DN 32)

Material

PP

Thread connection

1 1/4" Male

Seal material

EPDM

Work Pressure - BAR [20°C]

7

Weight [g]

200

Trade unit

pcs

Variant

934

Size

1 1/2" (DN40)

Material

PP

Thread connection

1 1/2" Male

Seal material

EPDM

Work Pressure - BAR [20°C]

7

Weight [g]

210

Trade unit

pcs

Variant

935

Size

2" (DN50)

Material

PP

Thread connection

2" Male

Seal material

EPDM

Work Pressure - BAR [20°C]

7

Weight [g]

250

Trade unit

pcs

Variant

936

Size

3" (DN80)

Material

PP

Thread connection

3" Male

Seal material

EPDM

Work Pressure - BAR [20°C]

4

Weight [g]

760

Trade unit

pcs

Variant

937

Size

4" (DN100)

Material

PP

Thread connection

4" Male

Seal material

EPDM

Work Pressure - BAR [20°C]

3

Weight [g]

780

Trade unit

pcs
