CAMLOCK COUPLING TYPE DC - POLYPROPYLENE

CAMLOCK TYPE DC DUST CAP FEMALE PART POLYPROPYLENE INPART24
CAMLOCK COUPLING TYPE DC | FEMALE CAP | 18 BAR | POLYPROPYLENE | SEALING RING: EPDM

Product params

Material

Polipropylene

Sealing Ring

EPDM

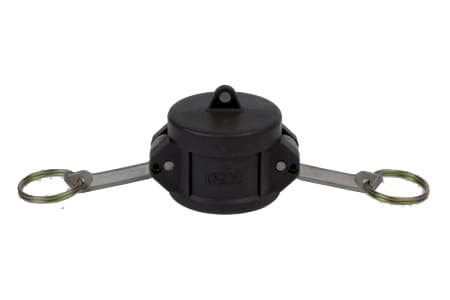

Female cap CAMLOCK coupling type DC. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

Variant

Size

Material

Seal material

Work Pressure - BAR [20°C]

Weight [g]

Variant
Size
Material
Seal material
Work Pressure - BAR [20°C]
Weight [g]
Availability
VariantDC015PP
Size1/2" (DN15)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]70
Availability
🔍
VariantDC020PP
Size3/4" (DN20)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]70
Availability
🔍
VariantDC025PP
Size1" (DN25)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]100
Availability
🔍
VariantDC032PP
Size1 1/4" (DN32)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]200
Availability
🔍
VariantDC040PP
Size1 1/2" (DN40)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]220
Availability
🔍
VariantDC050PP
Size2" (DN50)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]240
Availability
🔍
VariantDC075PP
Size3" (DN80)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]430
Availability
🔍
VariantDC100PP
Size4" (DN100)
MaterialPP
Seal materialEPDM
Work Pressure - BAR [20°C]7
Weight [g]670
Availability
🔍
