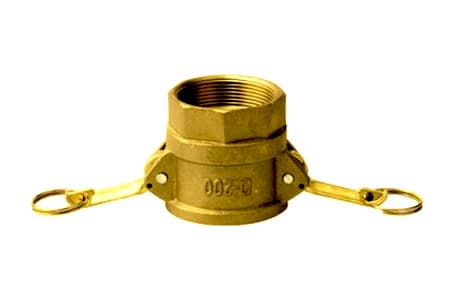

CAMLOCK COUPLING TYPE D - BRASS

CAMLOCK TYPE D FEMALE PART WITH FEMALE THREAD FROM BRASS INPART24
CAMLOCK COUPLING TYPE D | INTERNAL BSP THREAD | 18 BAR | BRASS | SEALING RING: NBR

Product params

Material

Brass

Internal Thread

BSP

Sealing Ring

NBR

Female CAMLOCK coupling type D with internal BSP thread. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

id

Variant

Size

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Variant
Size
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantD015BR
Size1/2" (DN15)
MaterialBrass
Thread connection1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,16
Availability
🔍
VariantD020BR
Size3/4" (DN20)
MaterialBrass
Thread connection3/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,22
Availability
🔍
VariantD025BR
Size1" (DN25)
MaterialBrass
Thread connection1" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,32
Availability
🔍
VariantD032BR
Size1 1/4" (DN32)
MaterialBrass
Thread connection1 1/4" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,46
Availability
🔍
VariantD040BR
Size1 1/2" (DN40)
MaterialBrass
Thread connection1 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,54
Availability
🔍
VariantD050BR
Size2" (DN50)
MaterialBrass
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,67
Availability
🔍
VariantD065BR
Size2 1/2" (DN65)
MaterialBrass
Thread connection2 1/2" Female
Seal materialNBR
Work Pressure - BAR [20°C]11
Weight [kg]0,94
Availability
🔍
VariantD080BR
Size3" (DN80)
MaterialBrass
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]9
Weight [kg]1,4
Availability
🔍
VariantD100BR
Size4" (DN100)
MaterialBrass
Thread connection4" Female
Seal materialNBR
Work Pressure - BAR [20°C]7
Weight [kg]2,09
Availability
🔍

CAMLOCK COUPLING TYPE D - BRASS

from 30.33zł
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

free delivery

Free shipping from 4000 PLN

high quality

Top quality product

sku

SKU: 78
