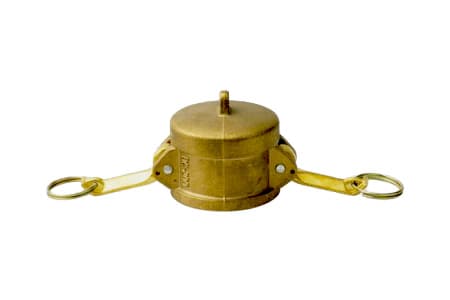

CAMLOCK COUPLING TYPE DC - BRASS

CAMLOCK TYPE DC DUST CAP FEMALE PART BRASS MATERIAL INPART24
CAMLOCK COUPLING TYPE DC | FEMALE CAP | 18 BAR | BRASS | SEALING RING: NBR

Product params

Material

Brass

Sealing Ring

NBR

Female cap CAMLOCK coupling type DC. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

id

Variant

Size

Material

Seal material

Work Pressure - BAR [20°C]

Weight [kg]

Variant
Size
Material
Seal material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantDC015BR
Size1/2" (DN15)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,12
Availability
🔍
VariantDC020BR
Size3/4" (DN20)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,13
Availability
🔍
VariantDC025BR
Size1" (DN25)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,27
Availability
🔍
VariantDC032BR
Size1 1/4" (DN32)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,41
Availability
🔍
VariantDC040BR
Size1 1/2" (DN40)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,48
Availability
🔍
VariantDC050BR
Size2" (DN50)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]18
Weight [kg]0,6
Availability
🔍
VariantDC065BR
Size2 1/2" (DN65)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]11
Weight [kg]0,77
Availability
🔍
VariantDC080BR
Size3" (DN80)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]9
Weight [kg]1,2
Availability
🔍
VariantDC100BR
Size4" (DN100)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]7
Weight [kg]1,87
Availability
🔍
VariantDC150BR
Size6" (DN150)
MaterialBrass
Seal materialNBR
Work Pressure - BAR [20°C]5
Weight [kg]3,72
Availability
🔍

CAMLOCK COUPLING TYPE DC - BRASS

from 49.98zł
vat excluded

stock
Availabledropdown
