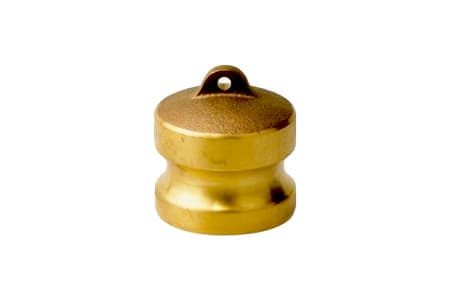

CAMLOCK COUPLING TYPE DP - BRASS

CAMLOCK TYPE DP MALE DUST PLUG BRASS MATERIAL INPART24
CAMLOCK COUPLING TYPE DP | BLANKING PLUG | 18 BAR | BRASS |

Product params

Material

Brass

Male CAMLOCK coupling type DP with blanking plug. Made in accordance with the US norm MIL-C-27847 (A-A-59326). It is one of the most popular quick coupling systems used in Europe's industrial applications. These couplings are designed for quick and safe connections between the hose and the installation and find applications in transfer systems, the chemical industry, and many other industrial sectors.

Size chart

id

Variant

Size

Material

Work Pressure - BAR [20°C]

Weight [kg]

Variant
Size
Material
Work Pressure - BAR [20°C]
Weight [kg]
Availability
VariantDP015BR
Size1/2" (DN15)
MaterialBrass
Work Pressure - BAR [20°C]11
Weight [kg]0,07
Availability
🔍
VariantDP020BR
Size3/4" (DN20)
MaterialBrass
Work Pressure - BAR [20°C]18
Weight [kg]0,09
Availability
🔍
VariantDP025BR
Size1" (DN25)
MaterialBrass
Work Pressure - BAR [20°C]18
Weight [kg]0,13
Availability
🔍
VariantDP032BR
Size1 1/4" (DN32)
MaterialBrass
Work Pressure - BAR [20°C]18
Weight [kg]0,2
Availability
🔍
VariantDP040BR
Size1 1/2" (DN40)
MaterialBrass
Work Pressure - BAR [20°C]18
Weight [kg]0,24
Availability
🔍
VariantDP050BR
Size2" (DN50)
MaterialBrass
Work Pressure - BAR [20°C]18
Weight [kg]0,4
Availability
🔍
VariantDP065BR
Size2 1/2" (DN65)
MaterialBrass
Work Pressure - BAR [20°C]11
Weight [kg]0,59
Availability
🔍
VariantDP080BR
Size3" (DN80)
MaterialBrass
Work Pressure - BAR [20°C]9
Weight [kg]0,72
Availability
🔍

CAMLOCK COUPLING TYPE DP - BRASS

from 16.41zł
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

high quality

Top quality product

sku

SKU: 80
