BAUER-BELOK B70 MALE PART x FLANGE PN10

BAUER BELOK B70 COUPLING MALE PART WITH LEVER ENDED BY FIXED FLANGE PN10 INPART24
MATERIAL: GALVANIZED STEEL | WORK PRESSURE: 12-20 BAR | FLANGE: DIN 2576/PN 10

Product params

Material

galvanized steel

Flange

DIN 2576

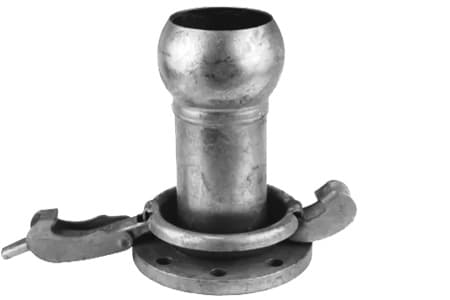

The BAUER-BELOK quick coupler, male part type S70/B70 (included lever), ended by fixed flange PN10 according to DIN 2576 norm.

Material: galvanized steel

Flange norm: DIN 2576/PN 10

Temperature range: -30°C do +80°C

Work pressure: 12-20 BAR (depands from size of coupling)

Size chart

Variant

Size

Material

Nr. of holes

Pitch circle

Outside flange

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

Size

Material

Nr. of holes

Pitch circle

Outside flange

Work Pressure - BAR [20°C]

Weight [kg]

Trade unit

Variant

1150

Size

50

Material

Galvanized steel

Nr. of holes

4

Pitch circle

125

Outside flange

165

Work Pressure - BAR [20°C]

20

Weight [kg]

1,88

Trade unit

pcs

Variant

1151

Size

76

Material

Galvanized steel

Nr. of holes

4

Pitch circle

145

Outside flange

185

Work Pressure - BAR [20°C]

20

Weight [kg]

3,91

Trade unit

pcs

Variant

1152

Size

108

Material

Galvanized steel

Nr. of holes

8

Pitch circle

180

Outside flange

220

Work Pressure - BAR [20°C]

15

Weight [kg]

6,12

Trade unit

pcs

Variant

1153

Size

159

Material

Galvanized steel

Nr. of holes

8

Pitch circle

240

Outside flange

285

Work Pressure - BAR [20°C]

12

Weight [kg]

11,1

Trade unit

pcs

Variant

1154

Size

194

Material

Galvanized steel

Nr. of holes

8

Pitch circle

295

Outside flange

340

Work Pressure - BAR [20°C]

12

Weight [kg]

17,22

Trade unit

pcs

BAUER-BELOK B70 MALE PART x FLANGE PN10

from 205.32zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 92

stock
Available
