FLAT WHITE EQ PVC HOSE EQUIPPED STORZ
Discharge Hose - STORZ Coupled | Reinforcement: PVC | Inner Wall: Fabric | Outer Wall: PVC | Working Pressure: 7-10 BAR | Temperature Range: -20°C to +65°C
Product params
Working Pressure [bar]
10
Inner Wall
Fabric/PVC
Fire hose, hydrant type, with STORZ couplings on the both tails. It works very well in lighter working conditions where the hose won't be dragged intensely on the ground. Its lightweight and compact design is suitable for applications such as submersible pumps and field irrigation.
Inner Wall: Fabric
Outer Wall: Fabric
Reinforcement: PVC
Working Pressure: 7-10 BAR
Temperature Range: -20°C to +65°C
Couplings: STORZ couplings made of cast aluminum
Size chart
id
Variant
Inner Diameter [mm]
Burst Pressure - BAR [20°C]
Coil [mtr]
Couplings
Variant
Inner Diameter [mm]
Burst Pressure - BAR [20°C]
Coil [mtr]
Couplings
Availability
Variant111050025
Inner Diameter [mm]25
Burst Pressure - BAR [20°C]10
Coil [mtr]5
Couplings2x STORZ ALU 31 (25-D)
Availability
🔍
Variant111100025
Inner Diameter [mm]25
Burst Pressure - BAR [20°C]10
Coil [mtr]10
Couplings2x STORZ ALU 31 (25-D)
Availability
🔍
Variant111200025
Inner Diameter [mm]25
Burst Pressure - BAR [20°C]10
Coil [mtr]20
Couplings2x STORZ ALU 31 (25-D)
Availability
🔍
Variant111300025
Inner Diameter [mm]25
Burst Pressure - BAR [20°C]10
Coil [mtr]30
Couplings2x STORZ ALU 31 (25-D)
Availability
🔍
Variant111050051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]5
Couplings2x STORZ ALU 66 (52-C)
Availability
🔍
Variant111100051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]10
Couplings2x STORZ ALU 66 (52-C)
Availability
🔍
Variant111101051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]10
Couplings2x STORZ ALU 81
Availability
🔍
Variant111150051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]15
Couplings2x STORZ ALU 66 (52-C)
Availability
🔍
Variant111200051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]20
Couplings2x STORZ ALU 66 (52-C)
Availability
🔍
Variant111201051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]20
Couplings2x STORZ ALU 81
Availability
🔍
Variant111250051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]25
Couplings2x STORZ ALU 66 (52-C)
Availability
🔍
Variant111300051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]30
Couplings2x STORZ ALU 66 (52-C)
Availability
🔍
Variant111301051
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]10
Coil [mtr]30
Couplings2x STORZ ALU 81
Availability
🔍
Variant111050076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]5
Couplings2x STORZ ALU 89 (75-B)
Availability
🔍
Variant111100076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]10
Couplings2x STORZ ALU 89 (75-B)
Availability
🔍
Variant111101076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]10
Couplings2x STORZ ALU 81
Availability
🔍
Variant111150076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]15
Couplings2x STORZ ALU 89 (75-B)
Availability
🔍
Variant111200076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]20
Couplings2x STORZ ALU 81
Availability
🔍
Variant111201076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]20
Couplings2x STORZ ALU 89 (75-B)
Availability
🔍
Variant111300076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]30
Couplings2x STORZ ALU 89 (75-B)
Availability
🔍
Variant111301076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]10
Coil [mtr]30
Couplings2x STORZ ALU 81
Availability
🔍
Variant111050102
Inner Diameter [mm]102
Burst Pressure - BAR [20°C]7
Coil [mtr]5
Couplings2x STORZ ALU 133 (110-A)
Availability
🔍
Variant111100102
Inner Diameter [mm]102
Burst Pressure - BAR [20°C]7
Coil [mtr]10
Couplings2x STORZ ALU 133 (110-A)
Availability
🔍
Variant111150102
Inner Diameter [mm]102
Burst Pressure - BAR [20°C]7
Coil [mtr]15
Couplings2x STORZ ALU 133 (110-A)
Availability
🔍
Variant111200102
Inner Diameter [mm]102
Burst Pressure - BAR [20°C]7
Coil [mtr]20
Couplings2x STORZ ALU 133 (110-A)
Availability
🔍
Variant111300102
Inner Diameter [mm]102
Burst Pressure - BAR [20°C]7
Coil [mtr]30
Couplings2x STORZ ALU 133 (110-A)
Availability
🔍
Related products

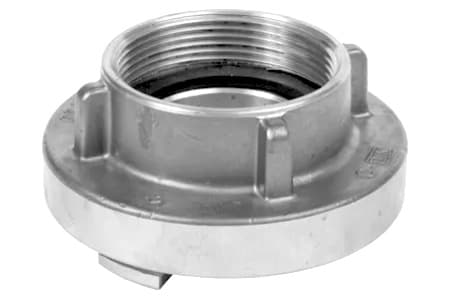

Material
