Home  /  Industrial hoses  /  Layflat hoses  /  FLAT EQ HD 16 NBR STORZ EQUIPPED HOSE

FLAT EQ HD 16 NBR STORZ EQUIPPED HOSE

LAY FLAT RUBBER HOSE EQUIPPED WITH STORZ FLAT EQ HD 16 NBR
Discharge Hose - STORZ Coupled | Reinforcement: Strong textile reinforcement | Inner Wall: NBR | Outer Wall: NBR | Working Pressure: 16 BAR | Temperature Range: -40°C to +100°C

Product params

Working Pressure [bar]

16

Burst Pressure [bar]

50

Inner Wall

NBR

Couplings

STORZ PN16 ALU

Fire hose with STORZ hydrant couplings, designed for the transfer of water, industrial dirty water, including oil-contaminated water. Used in agriculture as a hose for reel rain guns and for submersible pumps (deep well). The strong NBR rubber construction prevents the hose from twisting during use.

Inner Wall: NBR

Outer Wall: NBR

Reinforcement: Strong textile reinforcement

Working Pressure: 16 BAR

Temperature Range: -40°C to +100°C

Couplings: STORZ couplings made of cast aluminum PN16

Size chart

id

Variant

Inner Diameter [mm]

Burst Pressure - BAR [20°C]

Coil [mtr]

Couplings

Variant
Inner Diameter [mm]
Burst Pressure - BAR [20°C]
Coil [mtr]
Couplings
Availability
Variant110100038
Inner Diameter [mm]38
Burst Pressure - BAR [20°C]16
Coil [mtr]20
Couplings2xSTORZ ALU 66 (52-C)
Availability
🔍
Variant110100052
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]16
Coil [mtr]20
Couplings2xSTORZ ALU 66 (52-C)
Availability
🔍
Variant110200052
Inner Diameter [mm]52
Burst Pressure - BAR [20°C]16
Coil [mtr]20
Couplings2xSTORZ ALU 81
Availability
🔍
Variant110100076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]16
Coil [mtr]20
Couplings2xSTORZ ALU 81
Availability
🔍
Variant110200076
Inner Diameter [mm]75
Burst Pressure - BAR [20°C]16
Coil [mtr]20
Couplings2xSTORZ ALU 89 (75-B)
Availability
🔍
Variant110100102
Inner Diameter [mm]102
Burst Pressure - BAR [20°C]16
Coil [mtr]20
Couplings2xSTORZ ALU 133 (110-A)
Availability
🔍
Variant110100152
Inner Diameter [mm]152
Burst Pressure - BAR [20°C]16
Coil [mtr]20
Couplings2xSTORZ ALU 160
Availability
🔍

FLAT EQ HD 16 NBR STORZ EQUIPPED HOSE

from 686.78zł
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

free delivery

Free shipping from 4000 PLN

high quality

Top quality product

sku

SKU: 13

Have questions?

Related products

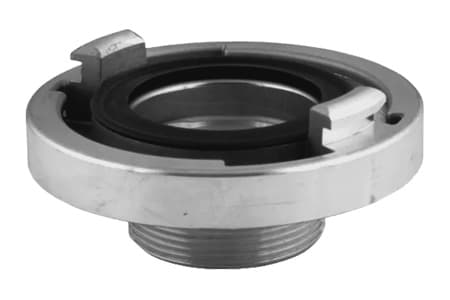

STORZ COUPLING WITH MALE THREAD PN 16 FORGED ALUMINIUM INPART24

STORZ MALE THREAD PN16 - FORGED ALUMINIUM

Availabledropdown

45.47zł vat excluded

Material

aluminium

Sealing ring

NBR

Norm

DIN ISO 228

MATERIAL: FORGED ALUMINIUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | MALE THREAD

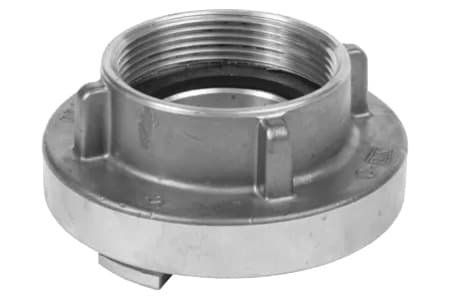

STORZ COUPLING FEMALE THREAD PN 16 FORGED ALUMINIUM INPART24
