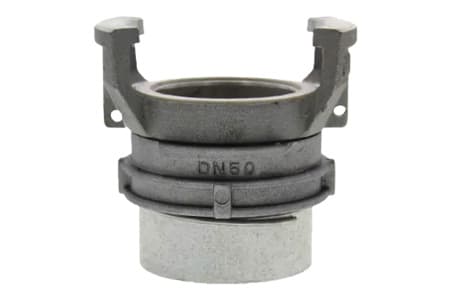

GUILLEMIN COUPLING BSP FEMALE THREAD FLAT SEAL - ALUMINIUM
![GUILLEMIN COUPLING WITH FEMALE THREAD BSP LATCH RING FLAT SEAL ALUMINIUM INPART24](/_next/image?url=https%3A%2F%2Fapi.inpart24.com%2Fimages%2Fproducts%2F222%2F545%2F5d87b321-ce5c-41eb-812f-552c480c0661.jpeg&w=1080&q=75)
MATERIAL: ALUMINIUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: NF E 29572 | LATCH RING, FLAT-SEALING
Product params
Material
aluminum
Sealing ring
NBR
Norm
NF E 29572
Guillemin coupling BSP female thread with latch ring and flat seal.
Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.
Size chart
id
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Availability
VariantGBSPFTFS050AL
Lug distance [mm]70
MaterialAluminum
Thread connection2" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍
VariantGBSPFTFS080AL
Lug distance [mm]103
MaterialAluminum
Thread connection3" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍
VariantGBSPFTFS100AL
Lug distance [mm]123
MaterialAluminum
Thread connection4" Female
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍
