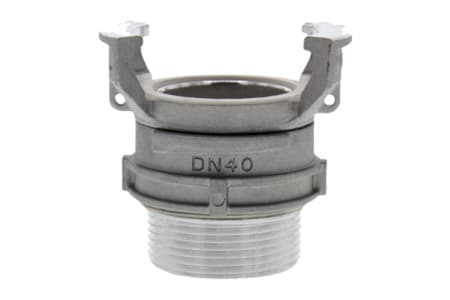

GUILLEMIN COUPLING BSP MALE THREAD FLAT SEAL - ALUMINUM

GUILLEMIN COUPLING WITH MALE THREAD BSP LATCH RING SEALING RING ALUMINIUM INPART24
MATERIAL: ALUMINUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: NF E 29572 | LATCH RING, FLAT-SEALING

Product params

Material

aluminum

Sealing ring

NBR

Norm

NF E 29572

Guillemin coupling BSP male thread with latch ring and flat seal.

Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.

Size chart

id

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Availability
VariantGBSPMTFS040AL
Lug distance [mm]56
MaterialAluminum
Thread connection1 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍
VariantGBSPMTFS050AL
Lug distance [mm]70
MaterialAluminum
Thread connection2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍
VariantGBSPFTFS100AL
Lug distance [mm]85
MaterialAluminum
Thread connection2 1/2" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍
VariantGBSPMTFS080AL
Lug distance [mm]103
MaterialAluminum
Thread connection3" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍
VariantGBSPMTFS100AL
Lug distance [mm]123
MaterialAluminum
Thread connection4" Male
Seal materialNBR
Work Pressure - BAR [20°C]16
Availability
🔍

GUILLEMIN COUPLING BSP MALE THREAD FLAT SEAL - ALUMINUM

from 40.41zł
vat excluded

stock
Availabledropdown
intereurope shipping

Shipping all over Europe

high quality

Top quality product

sku

SKU: 223
