GUILLEMIN END CAP WITH A LOCKING RING - SS 316

MATERIAL: SS 316 | WORK PRESSURE: 16 BAR | NORM: NF E 29572 | LOCKING RING
Product params
Material
SS
Norm
NF E 29572

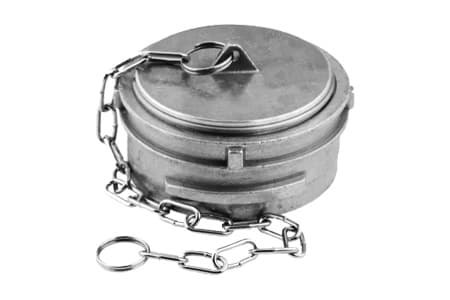

Guillemin end cap from stainless steel, with locking ring and chain.
Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.
Size chart
Variant
Lug distance [mm]
Material
Coupling size
Work Pressure - BAR [20°C]

VariantGECLR050SS
Lug distance [mm]70
MaterialSS 316
Coupling size DN 50
Work Pressure - BAR [20°C]16
buyRow
buyRow
Availability
Trade unit
pcs
ID
225.1974.2286
Price vat excluded

VariantGECLR065SS
Lug distance [mm]85
MaterialSS 316
Coupling size DN 65
Work Pressure - BAR [20°C]16
buyRow
buyRow
Availability
Trade unit
pcs
ID
225.1975.2287
Price vat excluded

VariantGECLR080SS
Lug distance [mm]103
MaterialSS 316
Coupling size DN 80
Work Pressure - BAR [20°C]16
buyRow
buyRow
Availability
Trade unit
pcs
ID
225.1976.2288
Price vat excluded

VariantGECLR100SS
Lug distance [mm]123
MaterialSS 316
Coupling size DN 100
Work Pressure - BAR [20°C]16
buyRow
buyRow
Availability
Trade unit
psc
ID
225.1977.2289
Price vat excluded
