GUILLEMIN COUPLING FEMALE THREAD - ALUMINIUM

GUILLEMIN COUPLING ALUMINIUM WITH FEMALE THREAD LOCKING RING INPART24
MATERIAL: ALUMINIUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: NF E 29572 | LOCKING RING

Product params

Material

aluminum

Sealing ring

NBR

Norm

NF E 29572

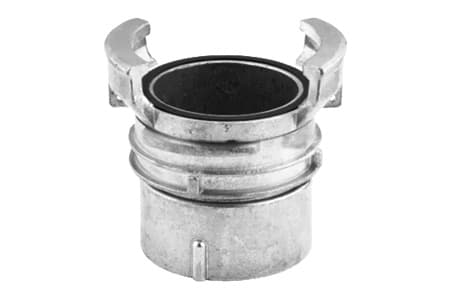

Guillemin coupling female inner thread, aluminium with locking ring.

Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.

Size chart

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Coupling size

Weight [g]

Trade unit

Variant

Lug distance [mm]

Material

Thread connection

Seal material

Work Pressure - BAR [20°C]

Coupling size

Weight [g]

Trade unit

Variant

2295

Lug distance [mm]

56

Material

Aluminum

Thread connection

1 1/2'' Female

Seal material

NBR

Work Pressure - BAR [20°C]

16

Coupling size

DN 40

Weight [g]

230

Trade unit

pcs

Variant

2296

Lug distance [mm]

70

Material

Aluminum

Thread connection

2'' Female

Seal material

NBR

Work Pressure - BAR [20°C]

16

Coupling size

DN 50

Weight [g]

400

Trade unit

pcs

Variant

2297

Lug distance [mm]

85

Material

Aluminum

Thread connection

2 1/2'' Female

Seal material

NBR

Work Pressure - BAR [20°C]

16

Coupling size

DN 65

Weight [g]

470

Trade unit

pcs

Variant

2298

Lug distance [mm]

103

Material

Aluminum

Thread connection

3'' Female

Seal material

NBR

Work Pressure - BAR [20°C]

16

Coupling size

DN 80

Weight [g]

600

Trade unit

psc

Variant

2299

Lug distance [mm]

123

Material

Aluminum

Thread connection

4'' Female

Seal material

NBR

Work Pressure - BAR [20°C]

16

Coupling size

DN 100

Weight [g]

1170

Trade unit

psc

GUILLEMIN COUPLING FEMALE THREAD - ALUMINIUM

from 43.36zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 227

stock
Available
