GUILLEMIN END CAP WITHOUT LOCKING RING - SS 316

GUILLEMIN END CAP WITHOUT LOCKING RING STAINLESS STEEL 316 INPART24
MATERIAL: SS 316 | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: NF E 29572

Product params

Material

SS

Sealing ring

NBR

Norm

NF E 29572

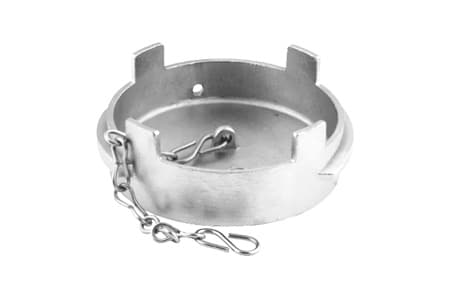

Guillemin end cap stainless steel SS 316, without locking ring.

Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.

Size chart

id

Variant

Lug distance [mm]

Material

Coupling size

Work Pressure - BAR [20°C]

Weight [g]

Seal material

Variant
Lug distance [mm]
Material
Coupling size
Work Pressure - BAR [20°C]
Weight [g]
Seal material
Availability
VariantGEC050SS
Lug distance [mm]70
MaterialSS 316
Coupling size DN 50
Work Pressure - BAR [20°C]16
Weight [g]230
Seal materialNBR
Availability
🔍
VariantGEC065SS
Lug distance [mm]85
MaterialSS 316
Coupling size DN 65
Work Pressure - BAR [20°C]16
Weight [g]320
Seal materialNBR
Availability
🔍
VariantGEC080SS
Lug distance [mm]103
MaterialSS 316
Coupling size DN 80
Work Pressure - BAR [20°C]16
Weight [g]430
Seal materialNBR
Availability
🔍
VariantGEC100SS
Lug distance [mm]123
MaterialSS 316
Coupling size DN 100
Work Pressure - BAR [20°C]16
Weight [g]810
Seal materialNBR
Availability
🔍
