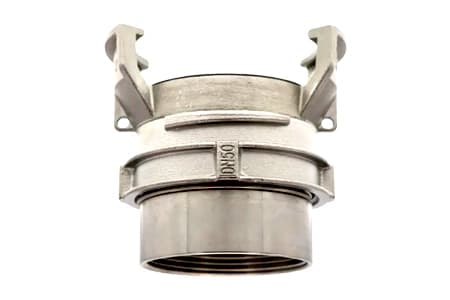

GUILLEMIN COUPLING FEMALE THREAD FLAT SEAL - SS 316
![GUILLEMIN COUPLING WITH FEMALE THREAD STAINLESS STEEL WITH LATCH RING FLAT SEAL INPART24](/_next/image?url=https%3A%2F%2Fapi.inpart24.com%2Fimages%2Fproducts%2F229%2F547%2F90c5345d-d63a-44c5-975a-c9da2b027dba.jpeg&w=1080&q=75)
MATERIAL: SS 316 | WORK PRESSURE: 16 BAR | SEALING RING: HYPALON | NORM: NF E 29572 | LATCH RING, FLAT-SEALING
Product params
Material
SS
Sealing ring
HYPALON
Norm
NF E 29572
Guillemin coupling from stainless steel, female thread with latch ring and flat seal.
Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.
Size chart
id
Variant
Thread connection
Work Pressure - BAR [20°C]
Lug distance [mm]
Material
Coupling size
Seal material
Variant
Thread connection
Work Pressure - BAR [20°C]
Lug distance [mm]
Material
Coupling size
Seal material
Availability
VariantGFTFS040SS
Thread connection1 1/2" Female
Work Pressure - BAR [20°C]16
Lug distance [mm]56
MaterialSS 316
Coupling sizeDN 40
Seal materialHypalon
Availability
🔍
VariantGFTFS050SS
Thread connection2" Female
Work Pressure - BAR [20°C]16
Lug distance [mm]70
MaterialSS 316
Coupling sizeDN 50
Seal materialHypalon
Availability
🔍
VariantGFTFS065SS
Thread connection2 1/2" Female
Work Pressure - BAR [20°C]16
Lug distance [mm]85
MaterialSS 316
Coupling sizeDN 65
Seal materialHypalon
Availability
🔍
VariantGFTFS080SS
Thread connection3" Female
Work Pressure - BAR [20°C]16
Lug distance [mm]103
MaterialSS 316
Coupling sizeDN 80
Seal materialHypalon
Availability
🔍
VariantGFTFS100SS
Thread connection4" Female
Work Pressure - BAR [20°C]16
Lug distance [mm]123
MaterialSS 316
Coupling sizeDN 100
Seal materialHypalon
Availability
🔍
