GUILLEMIN HOSE CONNECTOR WITH SMOOTH TAIL - SS 316

GUILLEMIN HOSE CONNECTOR STAINLESS STEEL WITH SMOOTH HOSETAIL INPART24
MATERIAL: SS 316 | WORK PRESSURE: 16 BAR | SEALING RING: HYPALON | NORM: NF E 29572 | LOCKING RING | SMOOTH TAIL FOR SAFETY CLAMPS

Product params

Material

SS

Sealing ring

Hypalon

Norm

NF E 29572

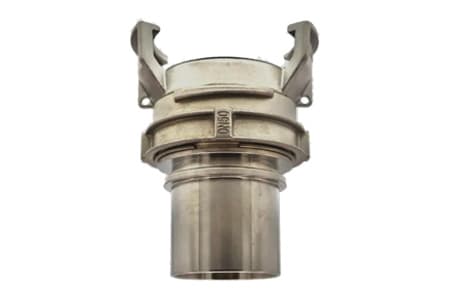

Guillemin coupling hose connector from stainless steel - smooth hosetail with collar for safety clamps and locking ring.

Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.

Size chart

Variant

Lug distance [mm]

Material

Coupling size

Work Pressure - BAR [20°C]

Hosetail [mm]

Seal material

Trade unit

Variant

Lug distance [mm]

Material

Coupling size

Work Pressure - BAR [20°C]

Hosetail [mm]

Seal material

Trade unit

Variant

2319

Lug distance [mm]

56

Material

SS 316

Coupling size

DN 40

Work Pressure - BAR [20°C]

16

Hosetail [mm]

38

Seal material

Hypalon

Trade unit

pcs

Variant

2320

Lug distance [mm]

70

Material

SS 316

Coupling size

DN 50

Work Pressure - BAR [20°C]

16

Hosetail [mm]

50

Seal material

Hypalon

Trade unit

pcs

Variant

2321

Lug distance [mm]

85

Material

SS 316

Coupling size

DN 65

Work Pressure - BAR [20°C]

16

Hosetail [mm]

63

Seal material

Hypalon

Trade unit

pcs

Variant

2322

Lug distance [mm]

103

Material

SS 316

Coupling size

DN 80

Work Pressure - BAR [20°C]

16

Hosetail [mm]

75

Seal material

Hypalon

Trade unit

psc

Variant

2323

Lug distance [mm]

123

Material

SS 316

Coupling size

DN 100

Work Pressure - BAR [20°C]

16

Hosetail [mm]

100

Seal material

Hypalon

Trade unit

psc

GUILLEMIN HOSE CONNECTOR WITH SMOOTH TAIL - SS 316

from 155.05zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 232

stock
Available
