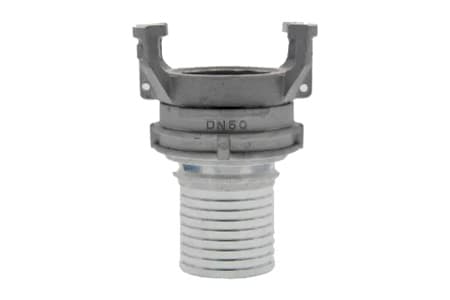

GUILLEMIN HOSE CONNECTOR TW HOSETAIL - ALUMINIUM

GUILLEMIN HOSE CONNECTOR ALUMINIUM WITH TAIL FOR SAFETY CLAMPS INPART24
MATERIAL: ALUMINIUM | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: NF E 29572 | LOCKING RING | HOSETAIL FOR SAFETY CLAMPS

Product params

Material

aluminum

Sealing ring

NBR

Norm

NF E 29572

Guillemin aluminium coupling hose connector - TW hosetail for safety clamps with collar and locking ring.

Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.

Size chart

Variant

Lug distance [mm]

Material

Work Pressure - BAR [20°C]

Hosetail [mm]

Seal material

Trade unit

Variant

Lug distance [mm]

Material

Work Pressure - BAR [20°C]

Hosetail [mm]

Seal material

Trade unit

Variant

2324

Lug distance [mm]

70

Material

Aluminum

Work Pressure - BAR [20°C]

16

Hosetail [mm]

50

Seal material

NBR

Trade unit

pcs

Variant

2325

Lug distance [mm]

103

Material

Aluminum

Work Pressure - BAR [20°C]

16

Hosetail [mm]

76

Seal material

NBR

Trade unit

pcs

Variant

2326

Lug distance [mm]

123

Material

Aluminum

Work Pressure - BAR [20°C]

16

Hosetail [mm]

102

Seal material

NBR

Trade unit

pcs

GUILLEMIN HOSE CONNECTOR TW HOSETAIL - ALUMINIUM

from 61.22zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 233

stock
Available
