GUILLEMIN COUPLING MALE THREAD WITHOUT LOCKING RING - ALUMINIUM

GUILLEMIN COUPLING MALE THREAD WITHOUT LOCKING RING ALUMINIUM INPART24
MATERIAL: ALUMINIUM | WORK PRESSURE: 16 BAR | NORM: NF E 29572 | WITHOUT LOCKING RING

Product params

Material

aluminum

Norm

NF E 29572

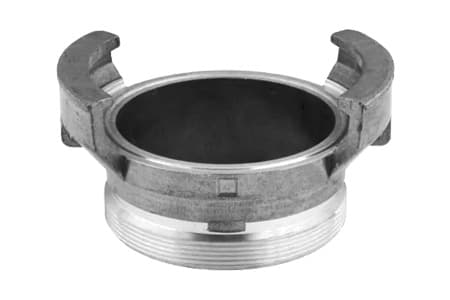

Guillemin coupling, aluminium with outer thread, without locking ring.

Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.

Size chart

Variant

Lug distance [mm]

Material

Thread connection

Work Pressure - BAR [20°C]

Weight [g]

Coupling size

Trade unit

Variant

Lug distance [mm]

Material

Thread connection

Work Pressure - BAR [20°C]

Weight [g]

Coupling size

Trade unit

Variant

2334

Lug distance [mm]

56

Material

Aluminum

Thread connection

1 1/2'' Male

Work Pressure - BAR [20°C]

16

Weight [g]

120

Coupling size

DN 40

Trade unit

pcs

Variant

2335

Lug distance [mm]

70

Material

Aluminum

Thread connection

2'' Male

Work Pressure - BAR [20°C]

16

Weight [g]

150

Coupling size

DN 50

Trade unit

pcs

Variant

2336

Lug distance [mm]

85

Material

Aluminum

Thread connection

2 1/2'' Male

Work Pressure - BAR [20°C]

16

Weight [g]

230

Coupling size

DN 65

Trade unit

pcs

Variant

2337

Lug distance [mm]

103

Material

Aluminum

Thread connection

3'' Male

Work Pressure - BAR [20°C]

16

Weight [g]

460

Coupling size

DN 80

Trade unit

psc

Variant

2338

Lug distance [mm]

123

Material

Aluminum

Thread connection

4'' Male

Work Pressure - BAR [20°C]

16

Weight [g]

640

Coupling size

DN 100

Trade unit

psc
