GUILLEMIN COUPLING MALE THREAD FLAT SEAL - SS 316
MATERIAL: SS 316 | WORK PRESSURE: 16 BAR | SEALING RING: NBR | NORM: NF E 29572 | FLAT SEAL
Product params
Material
SS
Sealing ring
NBR
Norm
NF E 29572

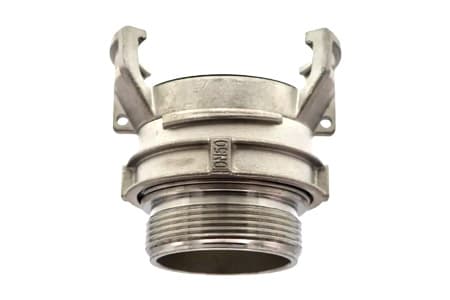

Guillemin stainless steel coupling with locking ring, outer thread and flat seal.
Symmetric couplings are used in industrial installations and for reloading liquids and bulk materials. Guillemin couplings are compliant with the EN 14420-8/NF E 29-572 standard. They are characterized by simple installation of both ends. Installation is carried out by applying both catches and then turning both locking rings. Guillemin couplings can also work as both pressure and suction-discharge couplings.
Size chart
id
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Coupling size
Variant
Lug distance [mm]
Material
Thread connection
Seal material
Work Pressure - BAR [20°C]
Coupling size
Availability
VariantGMTFS040SS
Lug distance [mm]56
MaterialSS 316
Thread connection1 1/2" Male
Seal materialHypalon
Work Pressure - BAR [20°C]16
Coupling sizeDN 40
Availability
🔍
VariantGMTFS050SS
Lug distance [mm]70
MaterialSS 316
Thread connection2" Male
Seal materialHypalon
Work Pressure - BAR [20°C]16
Coupling sizeDN 50
Availability
🔍
VariantGMTFS065SS
Lug distance [mm]85
MaterialSS 316
Thread connection2 1/2" Male
Seal materialHypalon
Work Pressure - BAR [20°C]16
Coupling sizeDN 65
Availability
🔍
VariantGMTFS080SS
Lug distance [mm]103
MaterialSS 316
Thread connection3" Male
Seal materialHypalon
Work Pressure - BAR [20°C]16
Coupling sizeDN 80
Availability
🔍
VariantGMTFS100SS
Lug distance [mm]123
MaterialSS 316
Thread connection4" Male
Seal materialHypalon
Work Pressure - BAR [20°C]16
Coupling sizeDN 100
Availability
🔍
