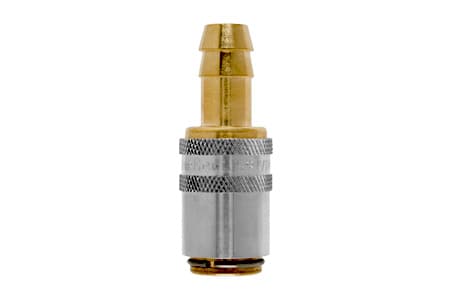

Mould coupling European profile with hose tail

MOLD COOLANT QUICK COUPLING WITH HOSE TAIL TYPE HASCO EUROPEAN PROFILE INPART24
Standard: European | Size DN: 6/9/13 | Type Hasco Z80/9 | Producer: Parker Rectus | Connector: straight hose tail

Product params

Profile

European

Temperature

-15°C to +200°C

Part

Female with hose tail

Sealing

FKM

The quick release coupling with hose tail in the European profile is dedicated to used in circuits of injection molding machines. It provides a safe connection with the cooling hose like the MASTER-FORM HP 140 EPDM. Easy to use by one hand, safety thanks to a shut-off valve (optionally). The hose barb can be assembled by the worm drive hose clamp or the low-pressure ferrule.

Parameters:

  • Material: brass
  • Medium: hot water, glycol, coolant liquid
  • Work pressure: 15 bar
  • Temperature range: -15°C to +200°C
  • Sealing: FKM

Compatibility:

  • Tema TL6510
  • Ludecke ESHM 9 TLAB
  • Hasco Z80/9
  • Mouldpro 09K10V

WARNING: If you cannot fit the size of the coupling that you looking for in our store or you want to know the time of realization for the missing parts, please contact our specialist.

Size chart

Variant

Profile

DN

Connection A

Valve

L mm

L1 mm

D mm

Trade unit

Variant

Profile

DN

Connection A

Valve

L mm

L1 mm

D mm

Trade unit

Variant

3514

Profile

EURO-65

DN

6

Connection A

9 mm

Valve

Yes

L mm

52

L1 mm

22

D mm

18

Trade unit

pcs

Variant

3515

Profile

EURO-65

DN

6

Connection A

9 mm

Valve

Yes

L mm

52

L1 mm

22

D mm

18

Trade unit

Box 10 pcs

Variant

3516

Profile

EURO-65

DN

6

Connection A

9 mm

Valve

No

L mm

52

L1 mm

22

D mm

18

Trade unit

pcs

Variant

3517

Profile

EURO-65

DN

6

Connection A

9 mm

Valve

No

L mm

52

L1 mm

22

D mm

18

Trade unit

Box 10 pcs

Variant

3518

Profile

EURO-90

DN

9

Connection A

13 mm

Valve

Yes

L mm

61,5

L1 mm

25

D mm

23

Trade unit

pcs

Variant

3519

Profile

EURO-90

DN

9

Connection A

13 mm

Valve

Yes

L mm

61,5

L1 mm

25

D mm

23

Trade unit

Box 10 pcs

Variant

3520

Profile

EURO-90

DN

9

Connection A

13 mm

Valve

No

L mm

61,5

L1 mm

25

D mm

23

Trade unit

pcs

Variant

3521

Profile

EURO-90

DN

9

Connection A

13 mm

Valve

No

L mm

61,5

L1 mm

25

D mm

23

Trade unit

Box 10 pcs

Variant

3522

Profile

EURO-20

DN

13

Connection A

19 mm

Valve

Yes

L mm

90

L1 mm

32

D mm

32

Trade unit

pcs

Variant

3523

Profile

EURO-20

DN

13

Connection A

19 mm

Valve

Yes

L mm

90

L1 mm

32

D mm

32

Trade unit

Box 10 pcs

Variant

3524

Profile

EURO-20

DN

13

Connection A

19 mm

Valve

No

L mm

90

L1 mm

32

D mm

32

Trade unit

pcs

Variant

3525

Profile

EURO-20

DN

13

Connection A

19 mm

Valve

No

L mm

90

L1 mm

32

D mm

32

Trade unit

Box 10 pcs

Mould coupling European profile with hose tail

from 37.61zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 336

stock
Available
