DROPFLEX FOOD BLUE SD HOSE
Product params
Working Pressure [bar]
Burst Pressure [bar]
Conductivity
Inner Wall

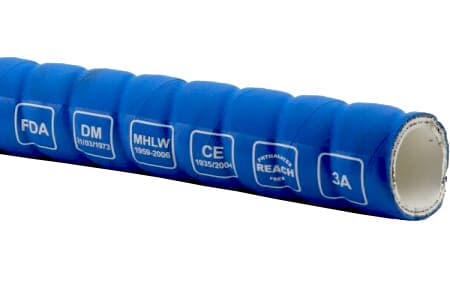

Extremely flexible, rubber hose with corrugated outer wall construction (the bending radius = 1 x inner wall size). Suitable for transportation of milk, juices, or alcohols up to 96,5%, reinforced with a double spiral (suction and discharge type). Designed for various applications, including as a transfer hose in dairies for stationary installations, for conveying alcohols in breweries, distilleries, and vineyards. It is also used as a drinking water hose. Thanks to its butyl outer wall, the hose is resistant to animal-based fats and food oils, and its construction remains resistant to abrasion and challenging working conditions. The product is free from phthalates and plasticizers, and it is neutral to the transported medium.
The hose is suitable for sterilization using the CIP (Clean-In-Place) method (+150 °C till 30 minutes).
Inner wall: Butyl/IIR - white
Outer wall: Butyl - blue
Reinforcement: textile reinforcement, double steel spiral
Working pressure: 10 BAR
Vacuum: 0,9 BAR
Temperature range: -40°C to +120°C
Norms: FDA 21 CFR 177.2600, DM 21.03.73 E SEGUENTI, 1935/2004/CE, 1907/2006/CE (REACH), 3A Sanitary Standard Class II
Size chart
id
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Bending Radius [mm]
