MILK COLLECTING HOSE LACTERA CITERDIAL SD NR

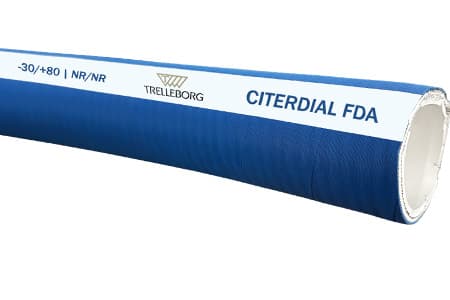

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24
Suction and discharge hose | Reinforcement: strong textile reinforcement, steel spiral | Inner wall: NR | Outer wall: NR | Working pressure: 6 BAR | Temperature range: -30 to +80 °C

Product params

Working Pressure [bar]

6

Burst Pressure [bar]

18

Conductivity

No

Inner Wall

NR

Extremely flexible and kink-free milk collecting hose. Especially suitable for the milk tanker lorries, dairy unloading bayse, or filling plant. Smooth outer wall remains abrasion resistance. The product is free from phthalates and plasticizers, and it is neutral to the transported medium.

The hose is suitable for sterilization using the CIP (Clean-In-Place), and steam method up to +110°C during 10 minutes max.

Inner wall: NR - white

Outer wall: NR - blue

Reinforcement: textile reinforcement, steel spiral

Working pressure: 6 BAR

Temperature range: -30°C to +80°C

Norms: FDA 21 CFR 177.1550, EU 1935/2004/CE

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Vacuum
Bending Radius [mm]
Weight [g]
Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510001
Variant1510001
Inner Diameter [mm]25
Outer Diameter [mm]36
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]50
Weight [g]700
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3282.3776

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3282.3777

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510011
Variant1510011
Inner Diameter [mm]32
Outer Diameter [mm]43
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]64
Weight [g]820
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3283.3778

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3283.3779

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510012
Variant1510012
Inner Diameter [mm]38
Outer Diameter [mm]49
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]76
Weight [g]1140
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3284.3780

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3284.3781

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510002
Variant1510002
Inner Diameter [mm]40
Outer Diameter [mm]51
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]80
Weight [g]1270
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3285.3782

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3285.3783

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510003
Variant1510003
Inner Diameter [mm]51
Outer Diameter [mm]63
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]102
Weight [g]1790
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3286.3784

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3286.3785

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510009
Variant1510009
Inner Diameter [mm]53
Outer Diameter [mm]65
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]106
Weight [g]1850
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3287.3786

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3287.3787

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510004
Variant1510004
Inner Diameter [mm]63
Outer Diameter [mm]75
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]126
Weight [g]2170
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3288.3788

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3288.3789

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510010
Variant1510010
Inner Diameter [mm]70
Outer Diameter [mm]83
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]140
Weight [g]2620
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3289.3790

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3289.3791

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510005
Variant1510005
Inner Diameter [mm]76
Outer Diameter [mm]89
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]152
Weight [g]3030
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3290.3792

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3290.3793

Price vat excluded

Calculated price per meter

Milk collecting rubber hose Lactera CITERDIAL SD NR FDA by Trelleborg Inpart24 Variant 1510007
Variant1510007
Inner Diameter [mm]100
Outer Diameter [mm]114
Work Pressure - BAR [20°C]6
Burst Pressure - BAR [20°C]18
Coil [mtr]40
Vacuum90%
Bending Radius [mm]350
Weight [g]3670
buyRow
buyRow

Availability

Trade unit

Meter

ID

353.3291.3794

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

353.3291.3795

Price vat excluded

Calculated price per meter

MILK COLLECTING HOSE LACTERA CITERDIAL SD NR

stock
Availabledropdown
intereurope shipping
Shipping all over Europe
free delivery
high quality
Top quality product
sku
SKU: 353  opis

Have questions?

Related products

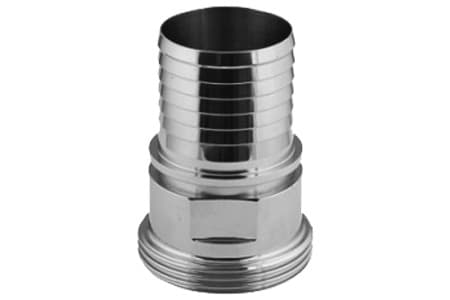

HYGIENIC COUPLING DIN 11851 MALE PART WITH SERRATED HOSE TAIL ENDED BY MALE THREAD SS 316 INPART24

STANDARD DIN 11851 | HOSE TAIL FOR SAFETY CLAMPS & CRIMPING ASSEMBLY | MALE THREAD RD | SS 316

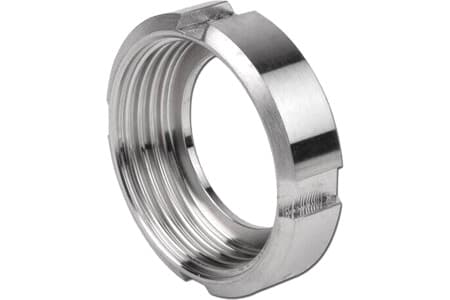

NUT DIN 11851 HYGIENIC COUPLING STAINLESS STEEL 304 ISO INCH INPART24

Material

AISI 304

STANDARD DIN 11851 - DIN 11864 (DIN/ISO/INCH) | FOR FEMALE PART | INNER THREAD RD | SS 304 |

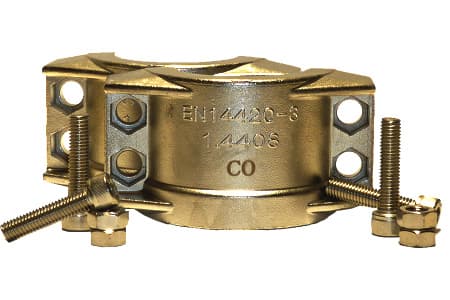

SAFETY CLAMP STAINLESS STEEL SS 316 EN 14420-3 INPART24
