AMERICA FLEX PVC HOSE

Extremely flexible PVC hose with spiral to slurry water AMERICA FLEX INPART24
Suction and Discharge Hose | Reinforcement: steel spiral | Inner Wall: PVC | Outer Wall: PVC | Working Pressure: 2-3 BAR | Temperature Range: -40°C to +45°C

Product params

Working Pressure [bar]

2-3

Inner Wall

soft PVC

Conductivity

No

Freeze-resistant, slurry tanker, suction and discharge hose with a steel spiral. A special mixture of the PVC ensures that the hose remains very flexible even at very low external temperatures. It is suitable for use in municipal vehicles, tank trucks, and as a pipeline component. The hose is used for the transfer of fluids such as slurry, dirty water, light water-based chemicals or fecal matter.

Inner Wall: soft PVC

Outer Wall: soft PVC

Reinforcement: steel spiral

Working Pressure: 2-3 BAR (depending on the diameter)

Temperature Range: -40°C to +45°C

Size chart

Variant

Inner Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Outer Diameter [mm]

Vacuum [bar]

Weight gr/mtr

Trade unit

Variant

Inner Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Outer Diameter [mm]

Vacuum [bar]

Weight gr/mtr

Trade unit

Variant

3666

Inner Diameter [mm]

76

Work Pressure - BAR [20°C]

3

Burst Pressure - BAR [20°C]

9

Bending Radius [mm]

250

Coil [mtr]

50

Outer Diameter [mm]

87

Vacuum [bar]

0,8

Weight gr/mtr

1 500

Trade unit

Meter

Variant

3667

Inner Diameter [mm]

76

Work Pressure - BAR [20°C]

3

Burst Pressure - BAR [20°C]

9

Bending Radius [mm]

250

Coil [mtr]

50

Outer Diameter [mm]

87

Vacuum [bar]

0,8

Weight gr/mtr

1 500

Trade unit

Coil 50mtr

Variant

3670

Inner Diameter [mm]

76

Work Pressure - BAR [20°C]

3

Burst Pressure - BAR [20°C]

9

Bending Radius [mm]

250

Coil [mtr]

50

Outer Diameter [mm]

87

Vacuum [bar]

0,8

Weight gr/mtr

1 500

Trade unit

Coil 25mtr

Variant

3668

Inner Diameter [mm]

102

Work Pressure - BAR [20°C]

2

Burst Pressure - BAR [20°C]

6

Bending Radius [mm]

330

Coil [mtr]

30

Outer Diameter [mm]

113,6

Vacuum [bar]

0,7

Weight gr/mtr

2 300

Trade unit

Meter

Variant

3669

Inner Diameter [mm]

102

Work Pressure - BAR [20°C]

2

Burst Pressure - BAR [20°C]

6

Bending Radius [mm]

330

Coil [mtr]

30

Outer Diameter [mm]

113,6

Vacuum [bar]

0,7

Weight gr/mtr

2 300

Trade unit

Coil 30mtr

AMERICA FLEX PVC HOSE

from 112.66zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 345

stock
Available

Related products

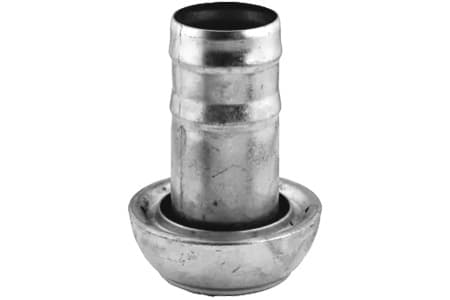

PERROT C77 COUPLING MALE PART WITH CORRUGATED HOSE TAIL INPART24

PERROT C77 MALE PART WITH HOSETAIL

Available

37.90zł vat excluded

Material

galvanized steel

Connector

hose tail

MATERIAL: GALVANIZED STEEL | WORKING PRESSURE: 12-15 BAR | CORRUGATED HOSE TAIL

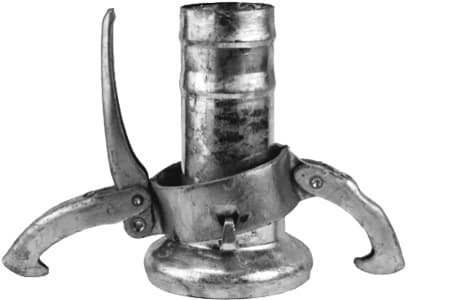

PERROT C78 COUPLING FEMALE PART WITH HOSE TAIL INPART24
