MULTI-ISO EPDM OHM 15 SD HOSE

Rubber EPDM industrial hose to water air pressure MULTI-ISO EPDM PHM 15 SD INPART24
Suction and Discharge Hose | Reinforcements: Two textile reinforcements, steel spiral | Inner Wall: EPDM | Outer Wall: EPDM | Working Pressure: 15 BAR | Temperature Range: -40°C to +125°C

Product params

Working Pressure [bar]

15

Burst Pressure [bar]

60

Inner Wall

EPDM

Conductivity

Yes

Norm

ISO 7751

EPDM rubber industrial hose reinforced with steel spiral and two textile plies, suction-discharge type. It is a heavier version of MULTI-WATER EPDM OHM 10 SD hose, which is more efficiency in harder environments. Suitable for the transfer of various fluids such as hot water, hot air, light chemicals, glycol, or industrial dirty water. It finds application in environments such as septic tank vehicles, HVAC chillers, or pipeline components. The hose's outer wall is resistant to abrasion and challenging environmental conditions, including UV radiation and ozone. The hose is conductive, i.e. R<10⁶ Ω through the wall.

Inner Wall: EPDM

Outer Wall: Black EPDM

Reinforcement: Two textile reinforcements, steel spiral

Working Pressure: 15 BAR

Operating Temperature: -40°C to +125°C

Norm: ISO 7751

Size chart

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Vacuum - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Weight [kg/mtr]

Trade unit

Variant

Inner Diameter [mm]

Outer Diameter [mm]

Work Pressure - BAR [20°C]

Burst Pressure - BAR [20°C]

Vacuum - BAR [20°C]

Bending Radius [mm]

Coil [mtr]

Weight [kg/mtr]

Trade unit

Variant

3684

Inner Diameter [mm]

51

Outer Diameter [mm]

63

Work Pressure - BAR [20°C]

15

Burst Pressure - BAR [20°C]

60

Vacuum - BAR [20°C]

1,00

Bending Radius [mm]

204

Coil [mtr]

61

Weight [kg/mtr]

1,80

Trade unit

Meter

Variant

3685

Inner Diameter [mm]

51

Outer Diameter [mm]

63

Work Pressure - BAR [20°C]

15

Burst Pressure - BAR [20°C]

60

Vacuum - BAR [20°C]

1,00

Bending Radius [mm]

204

Coil [mtr]

61

Weight [kg/mtr]

1,80

Trade unit

Coil 61mtr

Variant

3688

Inner Diameter [mm]

76

Outer Diameter [mm]

90

Work Pressure - BAR [20°C]

15

Burst Pressure - BAR [20°C]

60

Vacuum - BAR [20°C]

0,9

Bending Radius [mm]

304

Coil [mtr]

61

Weight [kg/mtr]

2,87

Trade unit

Meter

Variant

3689

Inner Diameter [mm]

76

Outer Diameter [mm]

90

Work Pressure - BAR [20°C]

15

Burst Pressure - BAR [20°C]

60

Vacuum - BAR [20°C]

0,9

Bending Radius [mm]

304

Coil [mtr]

61

Weight [kg/mtr]

2,87

Trade unit

Coil 61mtr

Variant

3690

Inner Diameter [mm]

102

Outer Diameter [mm]

116

Work Pressure - BAR [20°C]

15

Burst Pressure - BAR [20°C]

60

Vacuum - BAR [20°C]

0,9

Bending Radius [mm]

408

Coil [mtr]

61

Weight [kg/mtr]

3,9

Trade unit

Meter

Variant

3691

Inner Diameter [mm]

102

Outer Diameter [mm]

116

Work Pressure - BAR [20°C]

15

Burst Pressure - BAR [20°C]

60

Vacuum - BAR [20°C]

0,9

Bending Radius [mm]

408

Coil [mtr]

61

Weight [kg/mtr]

3,9

Trade unit

Coil 61mtr

MULTI-ISO EPDM OHM 15 SD HOSE

from 119.94zł
vat excluded

intereurope shipping

Shipping all over the country

high quality

Top quality product

call us

If you have any questions, write to us

sku

SKU: 347

stock
Available

Related products

BAUER BELOK B77 MALE PART WITH HOSE TAIL INPART24

BAUER-BELOK B77 MALE PART WITH HOSETAIL

Available

103.83zł vat excluded

Material

galvanized steel

MATERIAL: GALVANIZED STEEL | WORK PRESSURE: 12-20 BAR | HOSE TAIL

PERROT C78 COUPLING FEMALE PART WITH HOSE TAIL INPART24

PERROT C78 FEMALE PART WITH HOSETAIL

Available

105.69zł vat excluded

Material

galvanized steel

Connector

corrugated hose tail

MATERIAL: GALVANIZED STEEL | WORKING PRESSURE: 12-15 BAR | CORRUGATED HOSE TAIL

HOSE CLAMP 1-PIECE T-BOLT GBS HEAVY W4 STAINLESS STEEL INPART24

T-BOLT HOSE CLAMP GBS HEAVY W4

Available

8.50zł vat excluded

Material

SS

MATERIAL: AISI 304

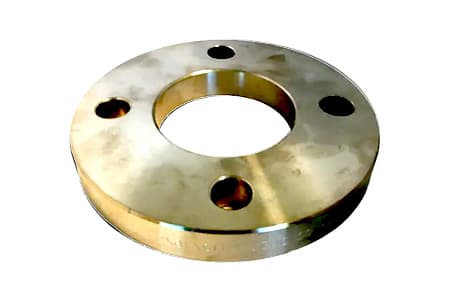

FLANGE PLATE EN 1092-01_04 GALVANIZED STEEL INPART24
