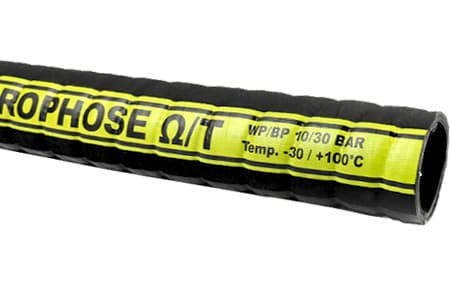

RUBBER TANK HOSE RUCOFLEX® DROPOIL 10 OHM SD

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24
Suction and discharge hose | Reinforcement: strong textile reinforcement, double spiral | Inner wall: NBR | Outer wall: NBR/CR | Working pressure: 10 BAR | Temperature range: -30 to +100 °C

Product params

Working Pressure [bar]

10

Burst Pressure [bar]

30

Conductivity

Yes

Inner Wall

NBR

Super flexible, rubber tank hose with corrugated outer wall construction (the bending radius = 1 x inner wall size). Suitable for transportation of oil and petrol with a maximum aromatic content of 50%. It is a special construction with a double spiral reinforced (suction and discharge type) and is designed for tankers when flexibility, lightweight, and dragged-over-the-ground resistance are crucial. The hose is conductive R<10⁶ Ω, R<10⁶ Ω, and fully meets the standards for use in industrial cleaning. Product designed for Proffesionals.

Inner wall: NBR

Outer wall: NBR/Chloroprene

Reinforcement: textile reinforcement, double steel spiral

Working pressure: 10 BAR

Vacuum: 0,9 BAR

Temperature range: -30°C to +100°C

Norms: EN 12115:2011, TRbF 131 deel 2 par. 5.6

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Bending Radius [mm]
Weight [kg/mtr]
Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400025
Variant51400025
Inner Diameter [mm]25
Outer Diameter [mm]37
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]25
Weight [kg/mtr]0.77
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3273.3757

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3273.3758

Price vat excluded

Calculated price per meter

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400032
Variant51400032
Inner Diameter [mm]32
Outer Diameter [mm]44
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]32
Weight [kg/mtr]0.94
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3274.3759

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3274.3760

Price vat excluded

Calculated price per meter

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400038
Variant51400038
Inner Diameter [mm]38
Outer Diameter [mm]50
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]38
Weight [kg/mtr]1.09
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3275.3761

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3275.3762

Price vat excluded

Calculated price per meter

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400050
Variant51400050
Inner Diameter [mm]50
Outer Diameter [mm]63
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]50
Weight [kg/mtr]1.60
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3276.3763

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3276.3764

Price vat excluded

Calculated price per meter

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400063
Variant51400063
Inner Diameter [mm]63.5
Outer Diameter [mm]76.5
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]63.5
Weight [kg/mtr]1.97
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3277.3765

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3277.3766

Price vat excluded

Calculated price per meter

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400075
Variant51400075
Inner Diameter [mm]75
Outer Diameter [mm]90
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]75
Weight [kg/mtr]2.60
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3278.3767

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3278.3768

Price vat excluded

Calculated price per meter

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400100
Variant51400100
Inner Diameter [mm]100
Outer Diameter [mm]115
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]100
Weight [kg/mtr]3.37
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3279.3769

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3279.3770

Price vat excluded

Calculated price per meter

Rubber Tank Hose NBR RUCOFLEX DROPOIL OHM 10 SD Inpart24 Variant 51400152
Variant51400152
Inner Diameter [mm]152
Outer Diameter [mm]174
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Coil [mtr]40
Bending Radius [mm]152
Weight [kg/mtr]6.98
buyRow
buyRow

Availability

Trade unit

Meter

ID

352.3280.3771

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

352.3280.3772

Price vat excluded

Calculated price per meter
