GOLLUM FLEX ISO SD EPDM 120 HOSE

GOLLUM FLEX ISO SD EPDM 120 water hose Inpart24
Suction and Discharge Hose | Reinforcements: Two textile reinforcements, double steel spiral | Inner Wall: EPDM | Outer Wall: SBR | Working Pressure: 10 BAR | Temperature Range: -40°C to +120°C

Product params

Working Pressure [bar]

10

Burst Pressure [bar]

30

Inner Wall

EPDM

Conductivity

No

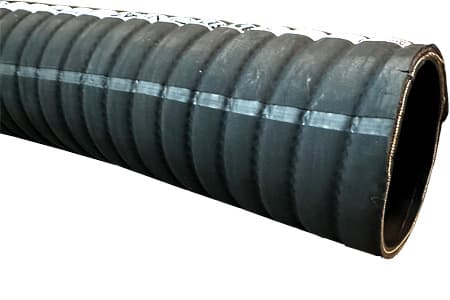

Strong and flexible, rubber S/D hose reinforced by two textile plie, and double steel spiral. Highly suitable to use as a slurry tanker hose (especially in the biggest vehicles), elastic pipeline in difficult environments, or hose for the hot water and light chemicals. Thanks to SBR rubber, the outer part of hose stays abrasion-resistant. The hose keeps great performance even at the lower temparatures.

Inner Wall: EPDM

Outer Wall: black SBR

Reinforcement: Two textile reinforcements, double steel spiral

Working Pressure: 10 BAR

Vacuum: 80%

Operating Temperature: -40°C to +120°C

Norm: ISO 1307

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Vacuum - BAR [20°C]
Bending Radius [mm]
Coil [mtr]
Weight [kg/mtr]
GOLLUM FLEX ISO SD EPDM 120 water hose Inpart24 Variant 1000754
Variant1000754
Inner Diameter [mm]63
Outer Diameter [mm]79
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Vacuum - BAR [20°C]0,8
Bending Radius [mm]250
Coil [mtr]40
Weight [kg/mtr]2,31
buyRow
buyRow

Availability

Trade unit

Meter

ID

359.3340.3893

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

359.3340.3894

Price vat excluded

Calculated price per meter

GOLLUM FLEX ISO SD EPDM 120 water hose Inpart24 Variant 1000753
Variant1000753
Inner Diameter [mm]127
Outer Diameter [mm]146
Work Pressure - BAR [20°C]10
Burst Pressure - BAR [20°C]30
Vacuum - BAR [20°C]0,8
Bending Radius [mm]550
Coil [mtr]40
Weight [kg/mtr]5,36
buyRow
buyRow

Availability

Trade unit

Meter

ID

359.3341.3895

Price vat excluded

buyRow

Availability

Trade unit

Coil 40mtr

ID

359.3341.3896

Price vat excluded

Calculated price per meter

GOLLUM FLEX ISO SD EPDM 120 HOSE

stock
Availabledropdown
intereurope shipping
Shipping all over Europe
free delivery
high quality
Top quality product
sku
SKU: 359  opis
