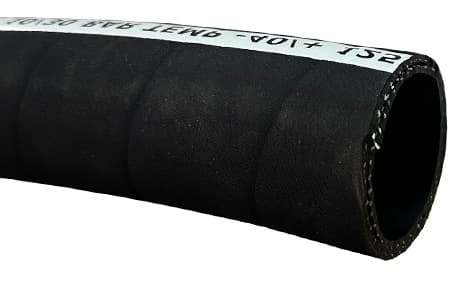

RUBBER TANK HOSE RUCOFLEX® DROPOIL 10 OHM SD

Suction and discharge hose | Reinforcement: strong textile reinforcement, double spiral | Inner wall: NBR | Outer wall: NBR/CR | Working pressure: 10 BAR | Temperature range: -30 to +100 °C

Product params

Working Pressure [bar]

10

Burst Pressure [bar]

30

Conductivity

Yes

Inner Wall

NBR

Super flexible, rubber tank hose with corrugated outer wall construction (the bending radius = 1 x inner wall size). Suitable for transportation of oil and petrol with a maximum aromatic content of 50%. It is a special construction with a double spiral reinforced (suction and discharge type) and is designed for tankers when flexibility, lightweight, and dragged-over-the-ground resistance are crucial. The hose is conductive R<10⁶ Ω, R<10⁶ Ω, and fully meets the standards for use in industrial cleaning. Product designed for Proffesionals.

Inner wall: NBR

Outer wall: NBR/Chloroprene

Reinforcement: textile reinforcement, double steel spiral

Working pressure: 10 BAR

Vacuum: 0,9 BAR

Temperature range: -30°C to +100°C

Norms: EN 12115:2011, TRbF 131 deel 2 par. 5.6

Size chart
Variant
Inner Diameter [mm]
Outer Diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Coil [mtr]
Bending Radius [mm]
Weight [g/mtr]
Variant1200421
Inner Diameter [mm]6
Outer Diameter [mm]13
Work Pressure - BAR [20°C]25
Burst Pressure - BAR [20°C]80
Coil [mtr]50
Bending Radius [mm]60
Weight [g/mtr]150
buyRow
buyRow

Availability

Trade unit

Meter

ID

363.3368.3947

Price vat excluded

buyRow

Availability

Trade unit

Coil 50mtr

ID

363.3368.3948

Price vat excluded

Calculated price per meter

Variant1200422
Inner Diameter [mm]8
Outer Diameter [mm]16
Work Pressure - BAR [20°C]25
Burst Pressure - BAR [20°C]80
Coil [mtr]60
Bending Radius [mm]80
Weight [g/mtr]210
buyRow
buyRow

Availability

Trade unit

Meter

ID

363.3369.3949

Price vat excluded

buyRow

Availability

Trade unit

Coil 60mtr

ID

363.3369.3950

Price vat excluded

Calculated price per meter

Variant1200423
Inner Diameter [mm]10
Outer Diameter [mm]18
Work Pressure - BAR [20°C]25
Burst Pressure - BAR [20°C]80
Coil [mtr]60
Bending Radius [mm]100
Weight [g/mtr]250
buyRow
buyRow

Availability

Trade unit

Meter

ID

363.3370.3951

Price vat excluded

buyRow

Availability

Trade unit

Coil 60mtr

ID

363.3370.3952

Price vat excluded

Calculated price per meter

Variant1200424
Inner Diameter [mm]13
Outer Diameter [mm]21
Work Pressure - BAR [20°C]25
Burst Pressure - BAR [20°C]80
Coil [mtr]60
Bending Radius [mm]130
Weight [g/mtr]330
buyRow
buyRow

Availability

Trade unit

Meter

ID

363.3371.3953

Price vat excluded

buyRow

Availability

Trade unit

Coil 60mtr

ID

363.3371.3954

Price vat excluded

Calculated price per meter

Variant1200425
Inner Diameter [mm]16
Outer Diameter [mm]25
Work Pressure - BAR [20°C]25
Burst Pressure - BAR [20°C]80
Coil [mtr]60
Bending Radius [mm]160
Weight [g/mtr]400
buyRow
buyRow

Availability

Trade unit

Meter

ID

363.3372.3955

Price vat excluded

buyRow

Availability

Trade unit

Coil 60mtr

ID

363.3372.3956

Price vat excluded

Calculated price per meter

Variant1200426
Inner Diameter [mm]19
Outer Diameter [mm]29
Work Pressure - BAR [20°C]25
Burst Pressure - BAR [20°C]80
Coil [mtr]60
Bending Radius [mm]190
Weight [g/mtr]560
buyRow
buyRow

Availability

Trade unit

Meter

ID

363.3373.3957

Price vat excluded

buyRow

Availability

Trade unit

Coil 60mtr

ID

363.3373.3958

Price vat excluded

Calculated price per meter

Variant1200427
Inner Diameter [mm]25
Outer Diameter [mm]36
Work Pressure - BAR [20°C]25
Burst Pressure - BAR [20°C]80
Coil [mtr]60
Bending Radius [mm]250
Weight [g/mtr]730
buyRow
buyRow

Availability

Trade unit

Meter

ID

363.3374.3959

Price vat excluded

buyRow

Availability

Trade unit

Coil 60mtr

ID

363.3374.3960

Price vat excluded

Calculated price per meter

RUBBER TANK HOSE RUCOFLEX® DROPOIL 10 OHM SD

stock
Availabledropdown
intereurope shipping
Shipping all over Europe
free delivery
high quality
Top quality product
sku
SKU: 363  opis

Have questions?

Related products

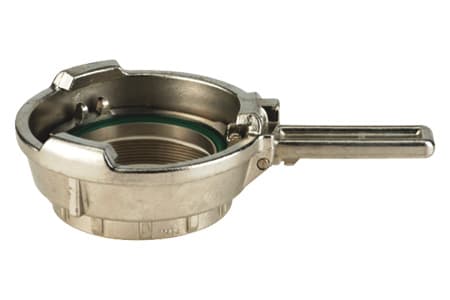

DIN TANKWAGON FEMALE COUPLING WITH FEMALE THREAD AND LEVER STAINLESS STEEL SS 316 INPART24

Material

AISI 316

Sealing ring

HYPALON/PTFE

MATERIAL: SS 316 | SEALING RING: NBR/PU | NORM: EN 14420-6 (BEFORE DIN 28450)

HOSE FITTING WITH MALE THREAD BSP AND SERRATED TAIL FOR SAFETY CLAMP STAINLESS STEEL SS 316 INPART24

Material

SS 316

Thread type

male BSP

MATERIAL: STAINLESS STEEL 316 | OUTER THREAD BSP | SERRATED HOSE TAIL FOR SAFETY CLAMPS AND CRIMPING ASSEMBLY

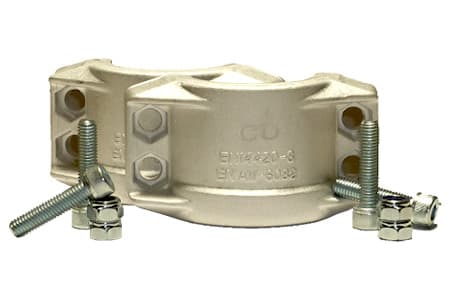

SAFETY CLAMP ALUMINIUM EN 14420-3 INPART24
