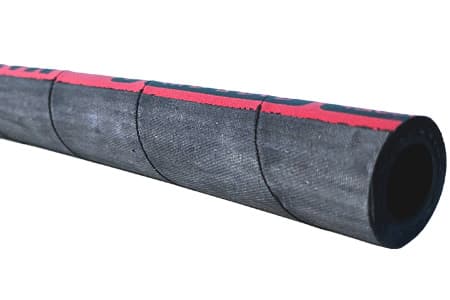

RADIATOR 3D EPDM 125 HOSE
Discharge Hose | Reinforcement: Strong textile reinforcements | Inner Wall: EPDM | Outer Wall: EPDM | Working Pressure: 3 BAR | Temperature Range: -30°C to +125°C
Product params
Work Pressure [bar]
3
Burst Pressure [bar]
9
Inner Wall
EPDM
Conducitivity
No
The rubber radiator hose is suitable for coolant installations to transfer the cooling water, glycol, and with antifreeze fluids. Thanks to his construction, the hose keep good resistance to UV, ozone, chemicals and abrasion.
Inner Wall: EPDM
Outer Wall: EPDM
Reinforcement: Strong textile reinforcements
Working Pressure: 3 BAR
Burst Pressure: 9 BAR
Temperature Range: -30°C to +125°C
Size chart
id
Variant
Inner Diameter [mm]
Outer diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Weight gr/mtr
Coil [mtr]
Variant
Inner Diameter [mm]
Outer diameter [mm]
Work Pressure - BAR [20°C]
Burst Pressure - BAR [20°C]
Weight gr/mtr
Coil [mtr]
Availability
Variant1000001
Inner Diameter [mm]16
Outer diameter [mm]23
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr460
Coil [mtr]40
Availability
🔍
Variant1000002
Inner Diameter [mm]22
Outer diameter [mm]28
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr600
Coil [mtr]40
Availability
🔍
Variant1000003
Inner Diameter [mm]25
Outer diameter [mm]33
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr650
Coil [mtr]40
Availability
🔍
Variant1000004
Inner Diameter [mm]28
Outer diameter [mm]35
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr720
Coil [mtr]40
Availability
🔍
Variant1000005
Inner Diameter [mm]30
Outer diameter [mm]38
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr760
Coil [mtr]40
Availability
🔍
Variant1000006
Inner Diameter [mm]32
Outer diameter [mm]40
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr810
Coil [mtr]40
Availability
🔍
Variant1000007
Inner Diameter [mm]35
Outer diameter [mm]43
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr870
Coil [mtr]40
Availability
🔍
Variant1000008
Inner Diameter [mm]38
Outer diameter [mm]46
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr940
Coil [mtr]40
Availability
🔍
Variant1000009
Inner Diameter [mm]40
Outer diameter [mm]48
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr970
Coil [mtr]40
Availability
🔍
Variant1000010
Inner Diameter [mm]42
Outer diameter [mm]51
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1020
Coil [mtr]40
Availability
🔍
Variant1000011
Inner Diameter [mm]45
Outer diameter [mm]53
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1070
Coil [mtr]40
Availability
🔍
Variant1000012
Inner Diameter [mm]48
Outer diameter [mm]58
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1150
Coil [mtr]40
Availability
🔍
Variant1000013
Inner Diameter [mm]50
Outer diameter [mm]60
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1190
Coil [mtr]40
Availability
🔍
Variant1000014
Inner Diameter [mm]55
Outer diameter [mm]65
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1270
Coil [mtr]40
Availability
🔍
Variant1000015
Inner Diameter [mm]60
Outer diameter [mm]70
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1350
Coil [mtr]40
Availability
🔍
Variant1000016
Inner Diameter [mm]65
Outer diameter [mm]73
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1480
Coil [mtr]40
Availability
🔍
Variant1000017
Inner Diameter [mm]70
Outer diameter [mm]80
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1520
Coil [mtr]40
Availability
🔍
Variant1000018
Inner Diameter [mm]75
Outer diameter [mm]85
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1620
Coil [mtr]40
Availability
🔍
Variant1000019
Inner Diameter [mm]80
Outer diameter [mm]90
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr1900
Coil [mtr]40
Availability
🔍
Variant1000020
Inner Diameter [mm]90
Outer diameter [mm]100
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr2065
Coil [mtr]40
Availability
🔍
Variant1000021
Inner Diameter [mm]102
Outer diameter [mm]112
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr2260
Coil [mtr]40
Availability
🔍
Variant1000022
Inner Diameter [mm]110
Outer diameter [mm]124
Work Pressure - BAR [20°C]3
Burst Pressure - BAR [20°C]9
Weight gr/mtr2400
Coil [mtr]40
Availability
🔍
